在一个大规模的Kubernetes集群里,可能有成千上万个PVC,这就意味着运维人员必须实现创建出这个多个 PV,此外,随着项目的需要,会有新的PVC不断被提交,那么运维人员就需要不断的添加新的,满足要求的PV,否 则新的Pod就会因为PVC绑定不到PV而导致创建失败。而且通过 PVC 请求到一定的存储空间也很有可能不足 以满足应用对于存储设备的各种需求，而且不同的应用程序对于存储性能的要求可能也不尽相同，比如读写速 度、并发性能等，为了解决这一问题，Kubernetes 又为我们引入了一个新的资源对象：StorageClass， 通过 StorageClass 的定义，管理员可以将存储资源定义为某种类型的资源，比如快速存储、慢速存储等， kubernetes根据 StorageClass 的描述就可以非常直观的知道各种存储资源的具体特性了，这样就可以根 据应用的特性去申请合适的存储资源了。
什么是StorageClass
Kubernetes提供了一套可以自动创建PV的机制,即:Dynamic Provisioning.而这个机制的核心在 于:StorageClass这个API对象. StorageClass对象会定义下面两部分内容:
1.PV的属性.比如,存储类型,Volume的大小等.
2.创建这种PV需要用到的存储插件

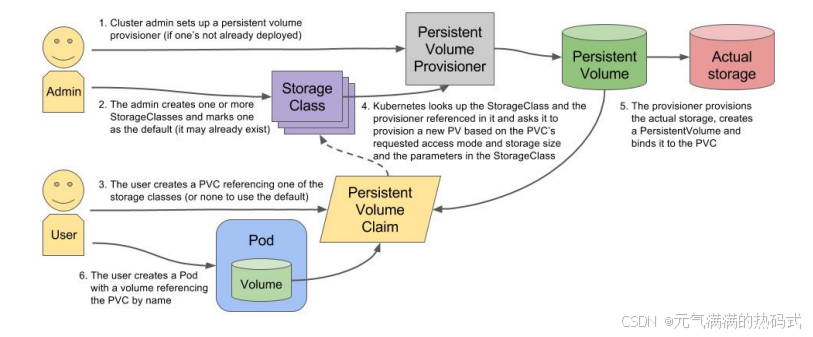

用户创建StatefulSet：statefuleset中定义volumeclaimtemplates,指定storageclassname：manages-nfs-storage.
k8s生成PVC：每个pod启动时，自动创建PVC
StorageClass触发Provisioner: k8s发现PVC引用了managed-nfs-storage，查找对应的storageclass，并调用其关联的provisioner
provisioner创建PV:provisioner根据storageclass配置，在NFS服务器上创建目录，并动态生成PV，绑定PVC
pod挂载PV：PV成功绑定后，pod挂载该PV到指定路径
创建storageclass
创建NFS共享服务
[root@k8s-master storageclass]# cat /etc/exports
/data/nfs-demo 192.168.9.0/24(rw,sync,no_root_squash,no_subtree_check)
[root@k8s-master storageclass]# sudo exportfs -r
[root@k8s-master storageclass]# sudo exportfs -v
/data/nfs-demo 192.168.9.0/24(sync,wdelay,hide,no_subtree_check,sec=sys,rw,secure,no_root_squash,no_all_squash)配置account及相关权限
# rbac.yaml (已去除所有注释和隐藏字符)
apiVersion: v1
kind: ServiceAccount
metadata:name: nfs-client-provisionernamespace: default
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:name: nfs-client-provisioner-runner
rules:
- apiGroups: [""]resources: ["persistentvolumes"] #允许管理PVverbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]resources: ["persistentvolumeclaims"] #允许管理PVCverbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]resources: ["storageclasses"] #允许访问storageclassverbs: ["get", "list", "watch"]
- apiGroups: [""]resources: ["events"] #允许记录事件verbs: ["create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: run-nfs-client-provisioner #绑定到serviceaccount
subjects:
- kind: ServiceAccountname: nfs-client-provisioner #引用的clusterrolenamespace: default
roleRef:kind: ClusterRolename: nfs-client-provisioner-runnerapiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:name: leader-locking-nfs-client-provisionernamespace: default
rules:
- apiGroups: [""]resources: ["endpoints"]verbs: ["get", "list", "watch", "create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:name: leader-locking-nfs-client-provisioner
subjects:
- kind: ServiceAccountname: nfs-client-provisionernamespace: default
roleRef:kind: Rolename: leader-locking-nfs-client-provisionerapiGroup: rbac.authorization.k8s.io[root@k8s-master storageclass]# kubectl apply -f rbac.yaml
serviceaccount/nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
[root@k8s-master storageclass]# kubectl get role,rolebinding
NAME CREATED AT
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner 2025-04-25T02:59:25ZNAME ROLE AGE
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner Role/leader-locking-nfs-client-provisioner 13s创建NFS资源的storageclass
[root@k8s-master storageclass]# kubectl apply -f nfs-StorageClass.yaml
storageclass.storage.k8s.io/manages-nfs-storage created
[root@k8s-master storageclass]# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
manages-nfs-storage nfs-storage Delete Immediate false 8s
#动态创建pv
[root@k8s-master storageclass]# cat nfs-StorageClass.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:name: managed-nfs-storage
provisioner: nfs-storage
parameters:archiveOnDelete: "false"创建NFS provisioner
[root@k8s-master storageclass]# kubectl get deploy,pod
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nfs-client-provisioner 1/1 1 1 18sNAME READY STATUS RESTARTS AGE
pod/nfs-client-provisioner-cfbb6c87c-ztfvf 1/1 Running 0 18s
#定义 NFS Provisioner 的 Deployment。
[root@k8s-master storageclass]# cat nfs-provisioner.yaml
apiVersion: apps/v1
kind: Deployment
metadata:name: nfs-client-provisionerlabels:app: nfs-client-provisionernamespace: default
spec:replicas: 1strategy:type: Recreate #重启策略：删除旧pod 再创建新podselector:matchLabels:app: nfs-client-provisionertemplate:metadata:labels:app: nfs-client-provisionerspec:serviceAccountName: nfs-client-provisioner #使用前面创建的serviceaccountcontainers:- name: nfs-client-provisionerimage: registry.cn-beijing.aliyuncs.com/mydlq/nfs-subdir-external-provisioner:v4.0.0volumeMounts:- name: nfs-client-rootmountPath: /persistentvolumesenv:- name: PROVISIONER_NAMEvalue: nfs-storage - name: NFS_SERVERvalue: 192.168.9.178 - name: NFS_PATHvalue: /data/nfs-demo volumes:- name: nfs-client-rootnfs:server: 192.168.9.178 path: /data/nfs-demo创建测试pod,查看是否可以正常挂载
[root@k8s-master storageclass]# cat test-pod.yaml
apiVersion: v1
kind: Pod
metadata: name: test-pod
spec:containers:- name: test-podimage: busybox:1.24command:- "/bin/sh"args:- "-c"- "touch /mnt/SUCCESS && exit 0 || exit 1"volumeMounts:- name: nfs-pvcmountPath: "/mnt"restartPolicy: "Never"volumes:- name: nfs-pvcpersistentVolumeClaim:claimName: test-claim[root@k8s-master default-test-claim-pvc-54d78e0c-7c7e-460c-a288-df1ecc3e346d]# ll
total 0
-rw-r--r--. 1 root root 0 Apr 26 23:16 SUCCESSStateFulDet+volumeClaimTemplates自动创建PV
statefulset：为每个pod提供稳定的唯一标识，适用于需要持久化数据或有序部署/扩展的应用；通过volumeclaimtemplates字段，为每个pod自动生成唯一的PVC
storageclass：描述动态存储蓝图，指定存储后端类型，provisioner,回收策略；触发动态创建PV：当 PVC 中引用 StorageClass 名称时，Kubernetes 会根据 StorageClass 配置，调用关联的 Provisioner 自动创建 PV
provisioner：动态创建PV，根据storageclass的配置动态创建PV，并绑定
| 组件 | 核心作用 | 动态存储中的角色 |
|---|---|---|
| StatefulSet | 管理有状态应用，为每个 Pod 生成唯一的 PVC | 触发动态 PVC 创建 |
| StorageClass | 定义存储类型和配置模板（如 NFS、云存储） | 告诉 Kubernetes 如何创建 PV |
| Provisioner | 根据 StorageClass 配置，在存储后端动态创建 PV | 执行实际存储资源分配和绑定操作 |
apiVersion: v1
kind: Service
metadata:name: nginx-headlesslabels: app: nginx-headless
spec:ports:- port: 80name: webclusterIP: Noneselector: app: nginx
---
apiVersion: apps/v1
kind: StatefulSet
metadata:name: web
spec:selector:matchLabels:app: nginxserviceName: "nginx-headless"replicas: 2template:metadata:labels: app: nginxspec: containers:- name: nginximage: nginx:1.17.1ports:- containerPort: 80name: webvolumeMounts:- name: wwwmountPath: /usr/share/nginx/htmlvolumeClaimTemplates:- metadata:name: wwwannotations:volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"spec: accessModes: - ReadWriteOnceresources:requests:storage: 1Gi[root@k8s-master storageclass]# kubectl get pod -l app=nginx
NAME READY STATUS RESTARTS AGE
web-0 1/1 Running 0 50s
web-1 1/1 Running 0 23s
[root@k8s-master storageclass]# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
test-claim Bound pvc-54d78e0c-7c7e-460c-a288-df1ecc3e346d 1Mi RWX managed-nfs-storage 4h11m
www-web-0 Bound pvc-138a31f9-f5c0-40a2-a6a8-7d49af0bc377 1Gi RWO managed-nfs-storage 60s
www-web-1 Bound pvc-6104a805-da71-4a0c-b9ae-048747412b69 1Gi RWO managed-nfs-storage 33s
[root@k8s-master storageclass]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pvc-138a31f9-f5c0-40a2-a6a8-7d49af0bc377 1Gi RWO Delete Bound default/www-web-0 managed-nfs-storage 65s
pvc-54d78e0c-7c7e-460c-a288-df1ecc3e346d 1Mi RWX Delete Bound default/test-claim managed-nfs-storage 4h11m
pvc-6104a805-da71-4a0c-b9ae-048747412b69 1Gi RWO Delete Bound default/www-web-1 managed-nfs-storage 38s[root@k8s-master storageclass]# ll /data/nfs-demo/
total 0
drwxrwxrwx. 2 root root 21 Apr 26 23:19 default-test-claim-pvc-54d78e0c-7c7e-460c-a288-df1ecc3e346d
drwxrwxrwx. 2 root root 6 Apr 27 03:18 default-www-web-0-pvc-138a31f9-f5c0-40a2-a6a8-7d49af0bc377
drwxrwxrwx. 2 root root 6 Apr 27 03:19 default-www-web-1-pvc-6104a805-da71-4a0c-b9ae-048747412b69
