在前端开发的日常工作中，我们常常会遇到需要用户进行在线签名的需求，比如电子合同签署、表单确认等场景。最近，我在项目里使用了一款极为好用的 Vue2 在线签名组件，今天就来和大家分享一下使用心得。

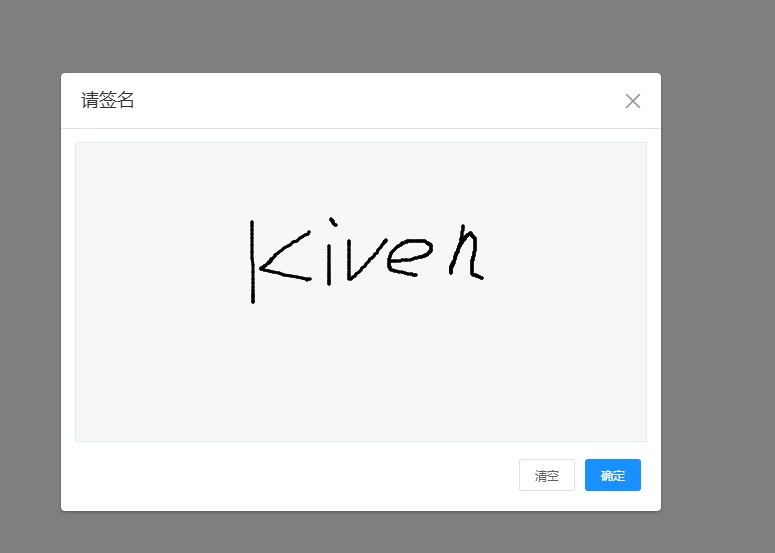

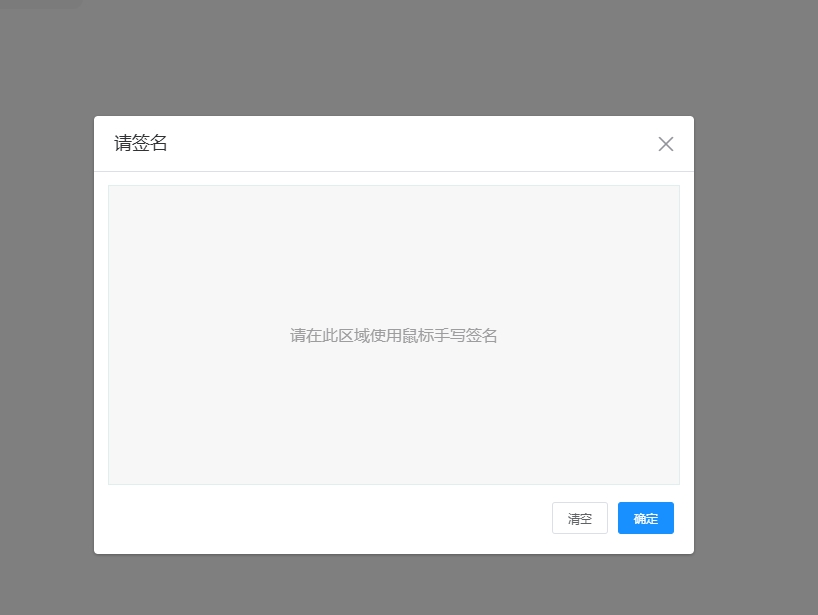

效果图
上代码 在 views 下将一个vue文件比如。sign.vue
<template><div class="page"><el-button type="primary" @click="openSign()">签 名</el-button><SignImgDialog v-if="signVisible" ref="SignImg" :lineWidth='3' :isDefault='0' @close="closeDialog" /></div></template><script>import SignImgDialog from '@/components/SignImgDialog'export default {components: { SignImgDialog },props: {user: {type: Object,default: () => {return {}}}},data() {return {signVisible: false,signImg: ''}},methods: {closeDialog() {this.signVisible = false},openSign() {this.signVisible = truethis.$nextTick(() => {this.$refs.SignImg.init()})},}}</script><style lang="scss" scoped>.userInfo {height: 100%;overflow: hidden;>>> .el-tabs__nav-scroll {padding-top: 0 !important;}}.sign {padding: 20px 50px 0px 50px;}.add-sign {position: relative;height: 160px;background-color: rgb(247, 247, 247);border-radius: 10px;display: flex;justify-content: center;align-items: center;&.active {border: 1px solid #1890ff;box-shadow: 0 0 6px rgba(6, 58, 108, 0.26);color: #1890ff;.btn,.icon-checked {display: block;}}.add-button {position: absolute;display: none;}.add-icon {font-size: 50px;color: rgb(157, 158, 159);}.sign-img {width: 100%;height: 100%;border-radius: 10px;}}.add-sign:hover .add-button {display: flex;width: 100%;height: 100%;border-radius: 10px;background-color: rgba(157, 158, 159, 0.8);justify-content: center;align-items: center;}.icon-checked1 {display: block;width: 20px;height: 20px;border: 20px solid #1890ff;border-left: 20px solid transparent;border-top: 20px solid transparent;border-bottom-right-radius: 10px;position: absolute;transform: scale(0.8);right: -5px;bottom: -5px;i {position: absolute;top: -4px;left: -4px;font-size: 24px;color: #fff;transform: scale(0.8);}}.sign-item {margin-bottom: 20px;}</style>然后再src下创建 components/SignImgDialog.vue
<template><div><el-dialog title="请签名" class="JNPF-dialog JNPF-dialog_center sign-dialog":closeOnClickModal='false' :visible.sync="signVisible" append-to-body width="600px"><div class="sign-main-box"><vue-esign ref="esign" :height='300' :width="560" :lineWidth="lineWidth" /><div class="tip" v-show="showTip">请在此区域使用鼠标手写签名</div></div><span slot="footer" class="dialog-footer"><el-button @click="handleReset">清空</el-button><el-button type="primary" :loading="loading" @click="handleGenerate()">确定</el-button></span></el-dialog></div>
</template>
<script>
import { createSign } from '@/api/permission/userSetting'
import vueEsign from 'vue-esign'
export default {name: 'SignImgDialog',components: { vueEsign },props: {lineWidth: {required: true,type: Number},isDefault: {required: true,type: Number},userInfo: {type: Object,default() {return {}}},type: {type: Number,default: 0}},data() {return {signVisible: false,loading: false,signImg: '',showTip: true}},methods: {init() {this.handleReset()this.signVisible = truethis.showTip = truethis.$nextTick(() => {this.$watch(() => {return this.$refs.esign.hasDrew},(val) => {this.showTip = !val})})},handleReset() {this.signImg = ''this.$nextTick(() => {this.$refs.esign && this.$refs.esign.reset()})},handleGenerate() {this.loading = truethis.$refs.esign.generate().then(res => {if (res) this.signImg = resif (this.type == 1) {this.signVisible = falsethis.loading = falsereturn this.$emit('close', this.signImg)}let query = {signImg: this.signImg,isDefault: this.isDefault}createSign(query).then(res => {if (this.isDefault == 0) {this.$message({message: res.msg,type: 'success',duration: 1500})if (!this.userInfo.signImg) this.$store.commit('user/SET_USERINFO_SIGNIMG', this.signImg)}if (this.isDefault == 1) {this.$store.commit('user/SET_USERINFO_SIGNIMG', this.signImg)}this.signVisible = falsethis.loading = falsethis.$emit('close', this.signImg)this.handleReset()}).catch(err => {this.signVisible = falsethis.loading = falsethis.$emit('close')this.handleReset()})}).catch(err => {this.loading = falsethis.$message.warning("请签名")})},}
}
</script>
<style lang="scss" scoped>
.sign-dialog {>>> .el-dialog__body {overflow: hidden;height: 320px;overflow: auto;overflow-x: hidden;padding: 23px 14px 2px !important;}
}.sign-main-box {border: 1px solid rgb(224, 238, 238);width: 100%;height: 300px;background-color: rgb(247, 247, 247);display: flex;justify-content: center;align-items: center;margin-top: -10px;margin-bottom: -10px;position: relative;.tip {height: 300px;line-height: 300px;text-align: center;position: absolute;left: 0;top: 0;right: 0;color: #9d9d9f;font-size: 16px;pointer-events: none;}
}
</style>是基于 vue-esign 实现的记得 npm install
ok 可以运行尝试了。
这款 Vue2 在线签名组件在功能、易用性和兼容性等方面都表现出色，为我们的项目开发带来了极大的便利。在未来的工作中，随着业务需求的不断拓展，我们也期待该组件能够持续更新和完善，比如增加更多的签名特效、支持多人签名等功能。同时，我也希望将这款好用的组件推荐给更多的前端开发者，让大家在遇到类似需求时能够少走弯路，共同提升前端开发的效率和质量。
