【首款ARMv9开源芯片“星睿“O6测评】在“周易”NPU上部署Yolov8l模型并实现实时目标检测

博主未授权任何人或组织机构转载博主任何原创文章，感谢各位对原创的支持！
博主链接

博客内容主要围绕：
       5G/6G协议讲解
       高级C语言讲解
       Rust语言讲解

在"星睿"O6的“周易”NPU上部署Yolov8l模型并实现实时目标检测

       瑞莎星睿 O6 (Radxa Orion O6) 拥有高达 28.8TOPs NPU (Neural Processing Unit) 算力，支持 INT4、INT8、INT16、FP16、BF16 和 TF32 类型的加速。

一、准备基础运行环境

安装python库，编写当前博客时最新的python版本是3.11。

sudo apt install libpython3.11-dev
sudo apt install python3.11-venv

二、下载NPU SDK

       NPU SDK 包含 NOE Compiler 与 CIX AI Model Hub, 要获取 SDK 需要通过申请 CIX 早鸟计划获取。 申请链接： CIX 早鸟计划

2.1 安装NPU驱动和UMD

sudo dpkg -i ./cix-npu-driver_1.0.0_arm64.deb
sudo dpkg -i ./cix-noe-umd_1.0.0_arm64.deb

安装完成之后一定要断电重启！！！

三、下载CIX AI Model HUb

       通过CIX 早鸟计划申请后，会有邮件发送到注册邮箱，请按邮件内容获取 AI Model Hub 仓库。

3.1 下载项目

git clone https://e.coding.net/g-uaqh1479/ai-model-hub/ai_model_hub.git

CIX AI Model Hub 里面涉及的例子，我们可以直接从 ModelScope 上下载 onnx 模型和预编译好的模型，无需在x86 Linux上重新编译。

3.2 创建虚拟环境

cd ~/ai_model_hub
python3 -m venv --system-site-packages .venv

3.3 安装依赖库

cd ~/ai_model_hub
.venv/bin/pip3 install -r  requirements.txt

四、执行推理任务

4.1 NPU上执行推理任务

       进入项目目录，下载最新的CIX模型文件并在NPU上执行推理。

cd ~/ai_model_hub/models/ComputeVision/Object_Detection/onnx_yolov8_l# 下载cix模型
wget https://modelscope.cn/models/cix/ai_model_hub_25_Q1/resolve/master/models/ComputeVision/Object_Detection/onnx_yolov8_l/yolov8_l.cix# 执行NPU推理
../../../../.venv/bin/python3 inference_npu.py --image_path ./test_data/ --model_path ./yolov8_l.cix

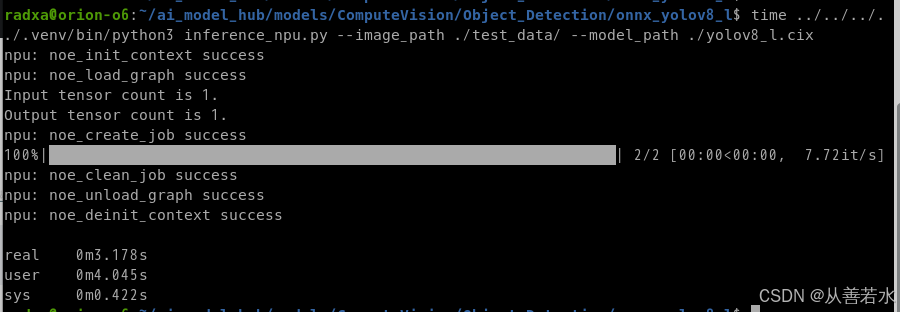

推理时间如下所示：

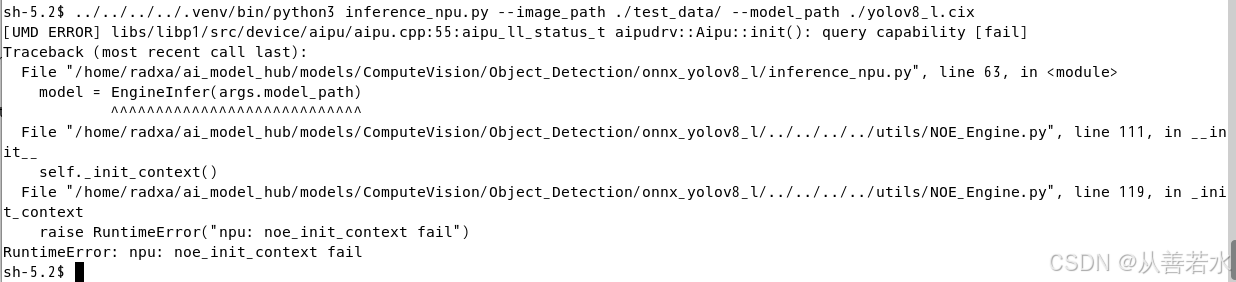

运行报错，提示RuntimeError: npu: noe_init_context fail

可能是因为NPU Driver或者UDM版本太低，建议获取最新的NPU Driver和UDM版本，重新安装后断电重启

4.2 CPU上执行推理任务

       进入项目目录，下载最新的ONNX模型文件并在CPU上执行推理，按照习惯会创建一个model目录将ONNX模型放到model目录中。

cd ~/ai_model_hub/models/ComputeVision/Object_Detection/onnx_yolov8_l# 创建onnx模型目录
mkdir model
cd model# 下载onnx模型
wget https://modelscope.cn/models/cix/ai_model_hub_25_Q1/resolve/master/models/ComputeVision/Object_Detection/onnx_yolov8_l/model/yolov8l.onnx# 退回到上级目录
cd ../# 执行CPU推理
../../../../.venv/bin/python3 inference_onnx.py --image_path ./test_data/ --onnx_path ./model/yolov8l.onnx

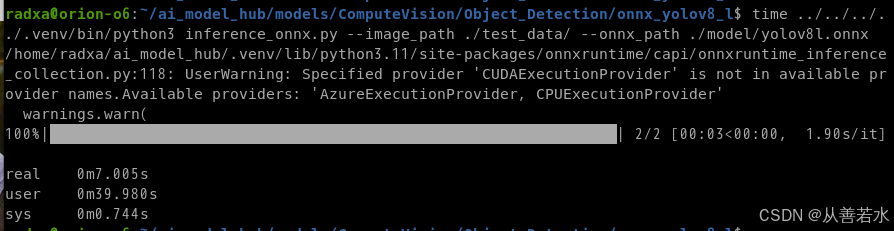

运行时间如下所示：

4.3 运行结果

       推理的结果保存在当前目录的output下：

五、实时目标检测开发

       我们使用opencv获取摄像头数据，将获取的视频帧进行实时推理，将推理结果显示出来。

5.1 使用opencv获取摄像头数据

       下面是具体的实现代码，仅供参考：

# 文件名 realtime_object_detection.pyimport cv2
import globdef opencv_camera_test(device_path):try:cap = cv2.VideoCapture(device_path)if not cap.isOpened():print(f"无法打开设备: {device_path}")return False# 读取测试帧ret, frame = cap.read()cap.release()if ret and frame is not None:print(f"设备 {device_path} 成功读取")return Trueelse:print(f"设备 {device_path} 读取失败")return Falseexcept Exception as e:print(f"设备 {device_path} 异常: {str(e)}")return False# 检测可用的视频设备
video_device = 0
for device in sorted(glob.glob("/dev/video*")):if opencv_camera_test(device) == True:video_device = device break# 初始化摄像头
cap = cv2.VideoCapture(video_device)
if not cap.isOpened():print("摄像头初始化失败")exit()# 设置分辨率
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1920)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 1080)
# 设置帧率
cap.set(cv2.CAP_PROP_FPS, 30)while True:# 读取一帧图像ret, frame = cap.read()# 如果正确读取帧，ret为Trueif not ret:print("无法获取摄像头数据")break# 显示图像cv2.imshow('Camera', frame)# 按'q'键退出循环if cv2.waitKey(1) == ord('q'):break# 释放摄像头资源
cap.release()
cv2.destroyAllWindows()

使用下面的命令运行python脚本，查看摄像头是否可以正常打开：

../../../../.venv/bin/python3realtime_object_detection.py

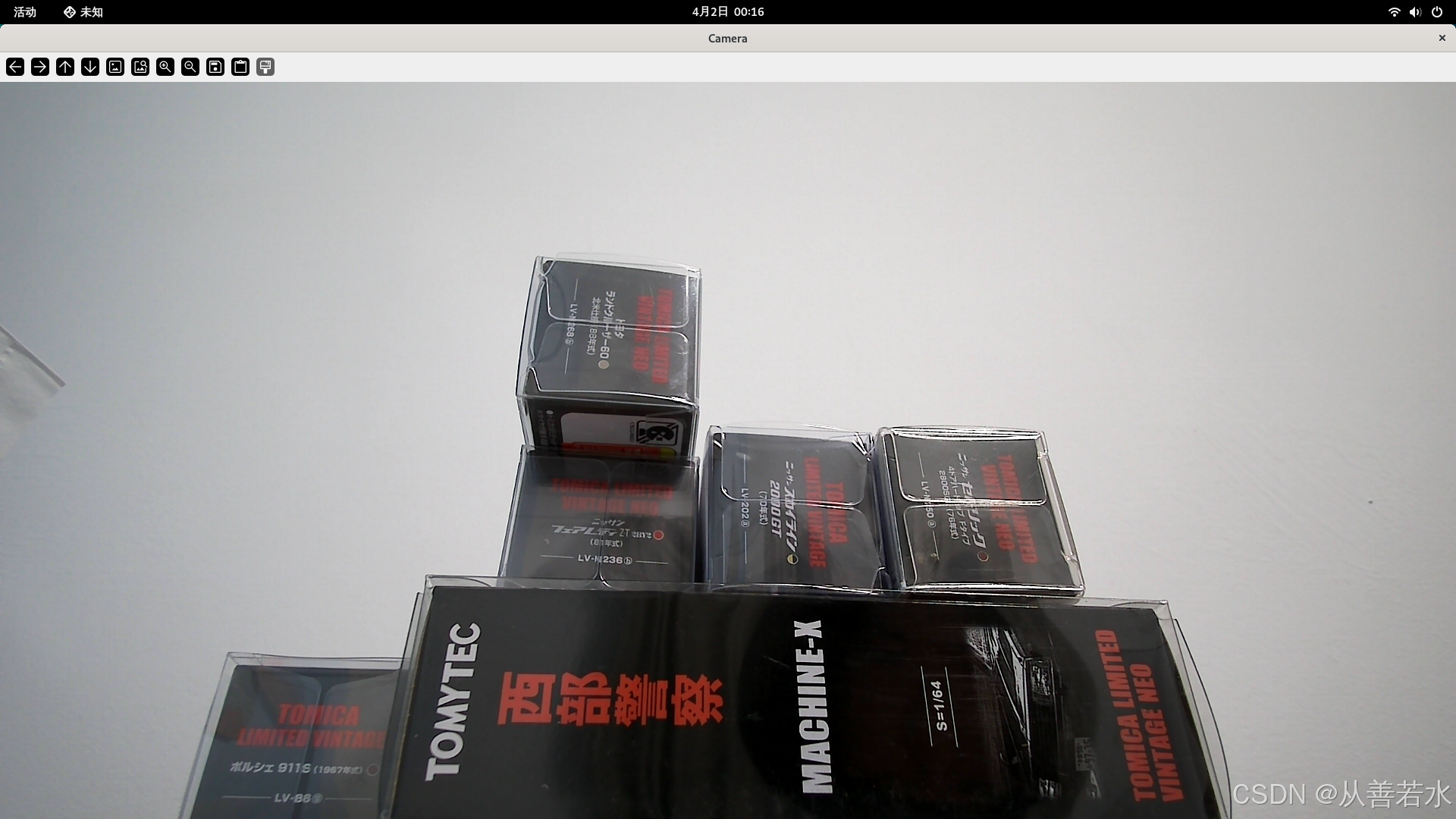

运行结果如下所示：

5.2 将获取的视频帧传入模型进行推理

       我们将通过OpenCV获取的视频帧数据进行简单的格式转换后传入模型进行推理，并将推理地结果实时展示出来。关键参考代码如下所示：

# Preprocess the image for inference
image = np.array(frame)
show_image = copy.deepcopy(image)# 记录原始图片shape和新图片shape
src_shape = show_image.shape[:2]
new_shape = (640, 640)# 将原始图片shape调整为新shape
image = cv2.resize(image, dsize=new_shape)# Normalize the image pixel values to the range [0, 1]
image = normalize_image(image).astype(np.float32)# 调整数据结构并增加batch维度
data = np.expand_dims(image.transpose(2, 0, 1), axis=0)

5.3 运行效果

5.4 完整代码参考

import cv2
import glob
import numpy as np
import argparse
import os
import sys
import time
import copy
from tqdm import tqdm_abs_path = os.path.join(os.path.dirname(__file__), "../../../../")
sys.path.append(_abs_path)
from utils.tools import get_file_list
from utils.image_process import *
from utils.object_detect_postprocess import postprocess_yolo, xywh2xyxy
from utils.draw import draw_coco as draw
from utils.NOE_Engine import EngineInferdef opencv_camera_test(device_path):try:cap = cv2.VideoCapture(device_path)if not cap.isOpened():print(f"无法打开设备: {device_path}")return False# 读取测试帧ret, frame = cap.read()cap.release()if ret and frame is not None:print(f"设备 {device_path} 成功读取")return Trueelse:print(f"设备 {device_path} 读取失败")return Falseexcept Exception as e:print(f"设备 {device_path} 异常: {str(e)}")return Falsedef get_args():parser = argparse.ArgumentParser()parser.add_argument("--image_path",default="test_data",help="path to the image file",)parser.add_argument("--realtime",default=False,help="read data from camera.",)parser.add_argument("--model_path",default="yolov8_l.cix",help="path to the quant model file",)parser.add_argument("--output_dir", default="./output_npu", help="path to the result output")parser.add_argument("--conf_thr",type=float,default=0.3,help="Score threshould to filter the result.",)parser.add_argument("--nms_thr", type=float, default=0.45, help="NMS threshould to the object.")parser.add_argument("--benchmark",default=False,help="benchmark on COCO val dataset.",)args = parser.parse_args()return argsif __name__ == "__main__":args = get_args()benchmark = args.benchmarkos.makedirs(args.output_dir, exist_ok=True)# Get list of images from the specified pathif args.realtime:video_device = 0for device in sorted(glob.glob("/dev/video*")):if opencv_camera_test(device) == True:video_device = device break# 初始化摄像头cap = cv2.VideoCapture(video_device)if not cap.isOpened():print("摄像头初始化失败")exit()# 设置分辨率cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1920)cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 1080)#cap.set(cv2.CAP_PROP_FRAME_WIDTH, 640)#cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 640)# 设置帧率cap.set(cv2.CAP_PROP_FPS, 30)# 加载模型model = EngineInfer(args.model_path)while True:# 读取一帧图像ret, frame = cap.read()# 如果正确读取帧，ret为Trueif not ret:print("无法获取摄像头数据")break#print("{}".format(frame.shape))#记录开始时间start_time = time.time()#临时保存当前视频帧#img_name = "frame.jpg"#success = cv2.imwrite(img_name, frame)#if not success:#    print(f"保存图片 {img_name} 失败")#    continue# Preprocess the image for inference#src_shape, new_shape, show_image, data = preprocess_object_detect_method1(#    img_name, target_size=(640, 640), mode="BGR"#)# Preprocess the image for inferenceimage = np.array(frame)show_image = copy.deepcopy(image)src_shape = show_image.shape[:2]new_shape = (640, 640)#print(f"src_shape: {src_shape}, new_shape: {new_shape}")image = cv2.resize(image, dsize=new_shape)# Normalize the image pixel values to the range [0, 1]image = normalize_image(image).astype(np.float32)data = np.expand_dims(image.transpose(2, 0, 1), axis=0)# Run inference and get predictionspred = model.forward(data.astype(np.float32))[0]pred = np.reshape(pred, (84, 8400))pred = np.transpose(pred, (1, 0))# bboxes, conf, class_idresults = postprocess_yolo(pred, args.conf_thr, args.nms_thr)if len(results) != 0:bbox_xywh = results[:, :4]bbox_xyxy = xywh2xyxy(bbox_xywh)x_scale = src_shape[1] / new_shape[1]y_scale = src_shape[0] / new_shape[0]bbox_xyxy *= (x_scale, y_scale, x_scale, y_scale)show_image = draw(show_image, bbox_xyxy, results[:, 5], results[:, 4])#统计时延mslatency_ms = (time.time() - start_time) * 1000#输出时延信息cv2.putText(show_image,f"Inference Latency: {latency_ms} ms",(10, 30), #字体位置cv2.FONT_HERSHEY_SIMPLEX,0.7, #字体大小(0,255,0), #字体颜色2) #线宽# 显示图像cv2.imshow('Camera', show_image)# 按'q'键退出循环if cv2.waitKey(1) == ord('q'):break# 释放摄像头资源cap.release()cv2.destroyAllWindows()else:image_list = get_file_list(args.image_path)model = EngineInfer(args.model_path)if benchmark:from utils.evaluate.coco_metric import COCO_Metricsave_pred_json = "pred_yolov8_l_npu.json"coco_metric = COCO_Metric(saved_json_path=save_pred_json)# get all test image pathimage_list = coco_metric.get_image_ids()else:image_list = get_file_list(args.image_path)for img_name in tqdm(image_list):if benchmark:# image info and image pathimg_id = img_nameimg_name = coco_metric.get_image_path(img_id)# Preprocess the image for inferencesrc_shape, new_shape, show_image, data = preprocess_object_detect_method1(img_name, target_size=(640, 640), mode="BGR")# Run inference and get predictionspred = model.forward(data.astype(np.float32))[0]pred = np.reshape(pred, (84, 8400))pred = np.transpose(pred, (1, 0))# bboxes, conf, class_idresults = postprocess_yolo(pred, args.conf_thr, args.nms_thr)if len(results) == 0:if benchmark:continueelse:output_path = os.path.join(args.output_dir, os.path.basename(img_name))# Save the resulting image to the output directorycv2.imwrite(output_path, show_image)continuebbox_xywh = results[:, :4]bbox_xyxy = xywh2xyxy(bbox_xywh)x_scale = src_shape[1] / new_shape[1]y_scale = src_shape[0] / new_shape[0]bbox_xyxy *= (x_scale, y_scale, x_scale, y_scale)if benchmark:coco_metric.append_bboxes(img_id, bbox_xyxy, results[:, 5], results[:, 4])else:ret_img = draw(show_image, bbox_xyxy, results[:, 5], results[:, 4])output_path = os.path.join(args.output_dir, os.path.basename(img_name))# Save the resulting image to the output directorycv2.imwrite(output_path, ret_img)if benchmark:coco_metric.saved_json()coco_metric.evaluate()model.clean()

---
