【pointpillar原创改进5】——引入SE注意力机制和FPN特征聚合网络

1. Pointpillar 介绍、下载与使用方法

KITTI数据集介绍：hyshhh：KITTI数据集介绍、组成结构、可视化方法

pointpillar介绍下载与安装：hyshhh：pointpillar（OpenPCDet）介绍、安装、评价指标介绍

找到各个部分网络对应的文件：hyshhh：OPenPCDet中的pointpillar中各个模块源代码位置与代码原理

2. Pointpillar 改进前准备

之前重写了一下pointpillar神经网络部分代码，以增加易读性并容易修改

hyshhh：重构pointpillar（PCDet）中神经网络部分的代码逻辑

之前改进了特征聚合网络，再此基础上再引入的resnet，其中原理可以看hyshhh：【pointpillar】原创改进3——添加特征聚合（FPN）颈部网络,实现网络有效涨点（3d检测ap涨点6%）



3. 改进方法介绍

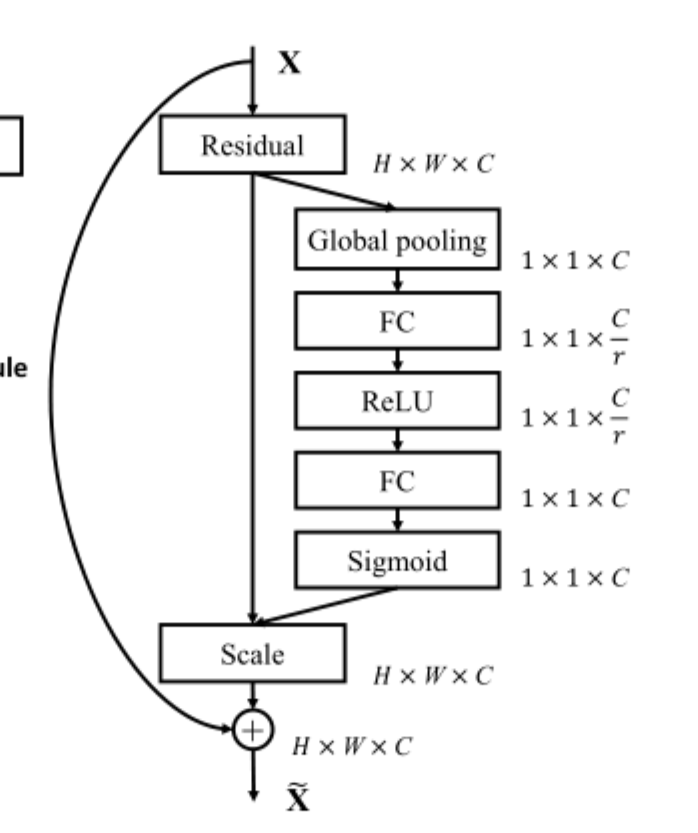

SE注意力机制出自SENet，SEnet是resnet的改进版本：resnet原理可以看：hyshhh：何恺明ResNet（残差网络）——彻底改变深度神经网络的训练方式

se注意力机制原理介绍可以看博客：[ 注意力机制 ] 经典网络模型1--SENet 详解与复现

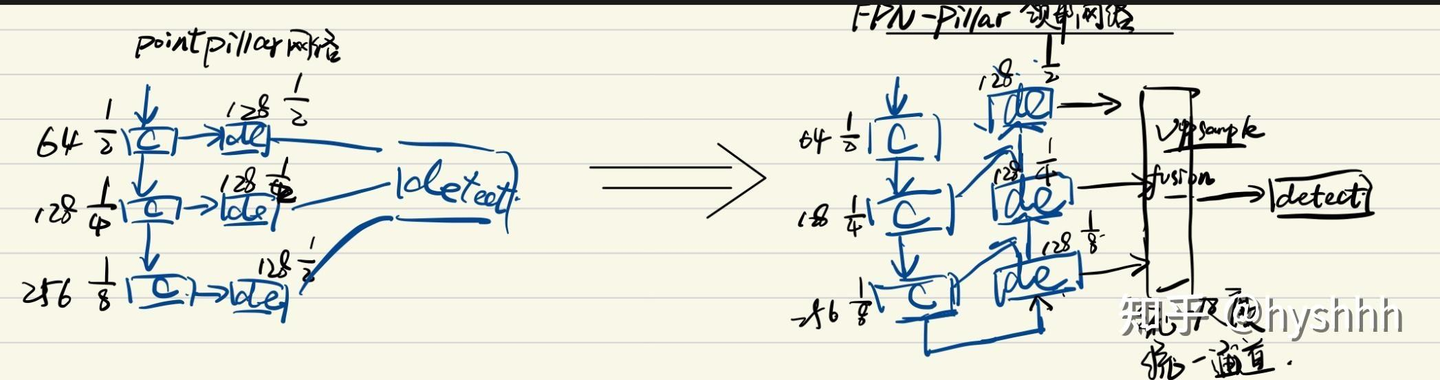

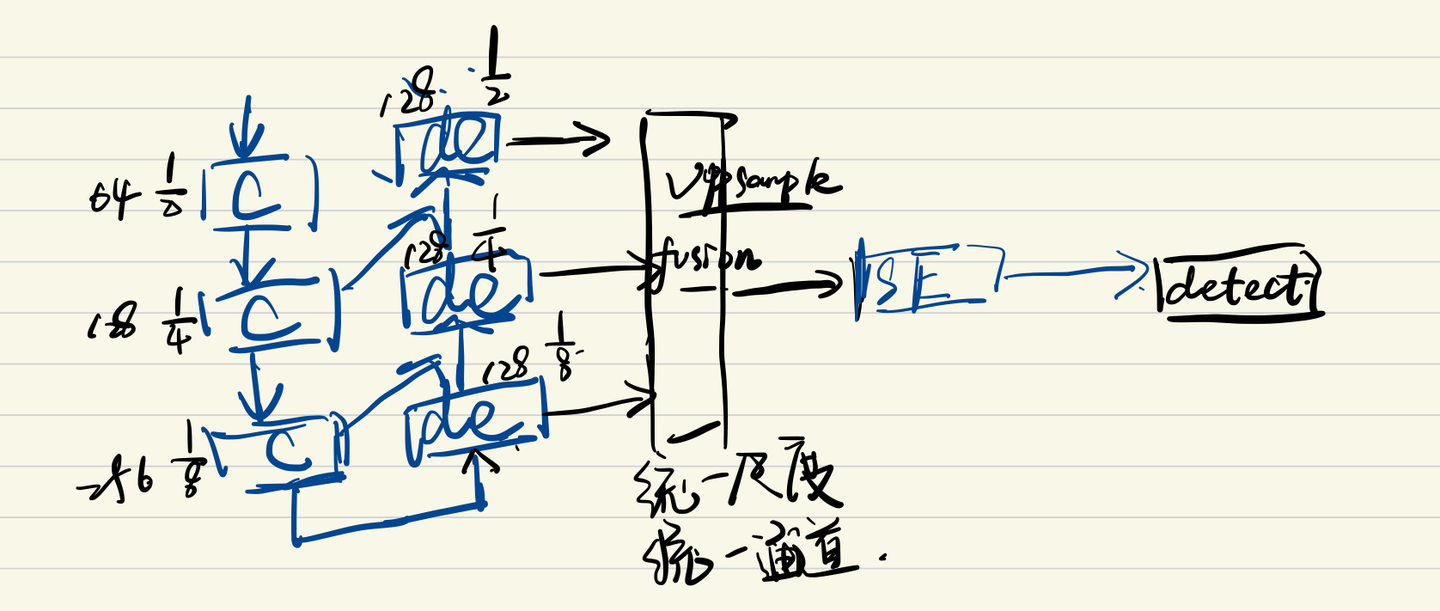

改进方法如图所示，在多尺度融合层之后添加SE注意力机制对所有通道的权重进行加权。

4. 使用方法

找到定义网络类：可以点链接看模块位置

hyshhh：OPenPCDet中的pointpillar中各个模块源代码位置与代码原理



将附录代码全部替换该类的代码 代码中SE类定义的就是SE注意力机制

附录

class deConvModule(nn.Module):     #上采样层def __init__(self, in_channels, out_channels, kernel_size=3, stride=2, padding=0, use_bn=True, use_relu=True):super(deConvModule, self).__init__()layers = [nn.ConvTranspose2d(in_channels, out_channels, kernel_size, stride, padding, bias=not use_bn)]if use_bn:layers.append(nn.BatchNorm2d(out_channels, eps=1e-3, momentum=0.01))if use_relu:layers.append(nn.ReLU(inplace=True))self.deconv = nn.Sequential(*layers)def forward(self, x):return self.deconv(x)
class ConvModule2(nn.Module):          #可变层卷集def __init__(self, in_channels, out_channels, kernel_size=3, stride=2, padding=0, use_bn=True, use_relu=True, num_1x1_layers=0):super(ConvModule2, self).__init__()layers = []# 添加 3x3 卷积层layers.append(nn.ZeroPad2d(1))layers.append(nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding=0, bias=not use_bn))if use_bn:layers.append(nn.BatchNorm2d(out_channels, eps=1e-3, momentum=0.01))if use_relu:layers.append(nn.ReLU(inplace=True))in_channels = out_channels  # 保证下一层输入通道匹配# 添加 1x1 卷积层for _ in range(num_1x1_layers):layers.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, stride=1, padding=1, bias=not use_bn))if use_bn:layers.append(nn.BatchNorm2d(out_channels, eps=1e-3, momentum=0.01))if use_relu:layers.append(nn.ReLU(inplace=True))in_channels = out_channelsself.conv = nn.Sequential(*layers)def forward(self, x):return self.conv(x)#上采样融合层
class upfusion(nn.Module):def __init__(self):super().__init__()self.up1=upsample = nn.Upsample(scale_factor=2, mode='nearest')self.up2=upsample = nn.Upsample(scale_factor=4, mode='nearest')   def forward(self,ups):ups[0]=self.up2(ups[0])ups[1]=self.up1(ups[1])return ups

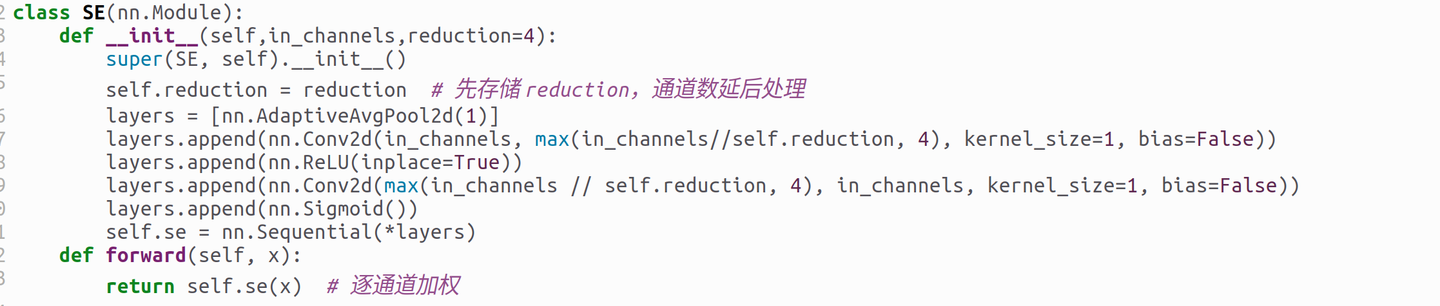

class SE(nn.Module):def __init__(self,in_channels,reduction=4):super(SE, self).__init__()self.reduction = reduction  # 先存储 reduction，通道数延后处理layers = [nn.AdaptiveAvgPool2d(1)]layers.append(nn.Conv2d(in_channels, max(in_channels//self.reduction, 4), kernel_size=1, bias=False))layers.append(nn.ReLU(inplace=True))layers.append(nn.Conv2d(max(in_channels // self.reduction, 4), in_channels, kernel_size=1, bias=False))layers.append(nn.Sigmoid())self.se = nn.Sequential(*layers)def forward(self, x):return self.se(x)  # 逐通道加权

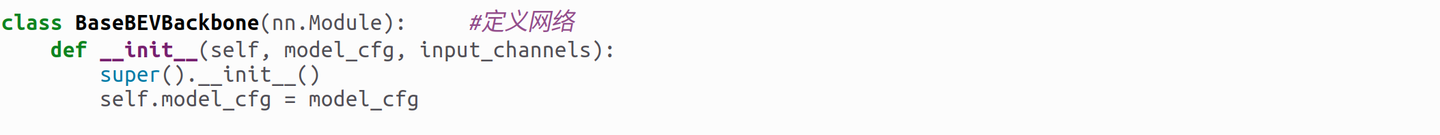

class BaseBEVBackbone(nn.Module):     #定义网络def __init__(self, model_cfg, input_channels):super().__init__()self.model_cfg = model_cfgif self.model_cfg.get('LAYER_NUMS', None) is not None:assert len(self.model_cfg.LAYER_NUMS) == len(self.model_cfg.LAYER_STRIDES) == len(self.model_cfg.NUM_FILTERS)layer_nums = self.model_cfg.LAYER_NUMSlayer_strides = self.model_cfg.LAYER_STRIDESnum_filters = self.model_cfg.NUM_FILTERSelse:layer_nums = layer_strides = num_filters = []if self.model_cfg.get('UPSAMPLE_STRIDES', None) is not None:assert len(self.model_cfg.UPSAMPLE_STRIDES) == len(self.model_cfg.NUM_UPSAMPLE_FILTERS)num_upsample_filters = self.model_cfg.NUM_UPSAMPLE_FILTERSupsample_strides = self.model_cfg.UPSAMPLE_STRIDESelse:upsample_strides = num_upsample_filters = []c_in_list = [input_channels, *num_filters[:-1]]#网络定义和前向传播       #下采样网络self.c1=ConvModule2(input_channels,64,stride=2,padding=0,num_1x1_layers=3)      #0self.c2=ConvModule2(64,128,stride=2,padding=0,num_1x1_layers=5)      #1self.c3=ConvModule2(128,256,stride=2,padding=0,num_1x1_layers=5)      #2#上采样特征聚合网络self.d1=deConvModule(256,128,1,stride=1)      #3 self.d2=deConvModule(256+128, 128,2,stride=2)         #4self.d3=deConvModule(256,128,2,stride=2)         #5self.Se=SE(in_channels=384)#上采样融合定义self.fusion=upfusion()c_in = sum(num_upsample_filters)self.num_bev_features = c_indef forward(self, data_dict):spatial_features = data_dict['spatial_features']ups = []co=[]         #存放中间变量ret_dict = {}x = spatial_features#下采样层x=self.c1(x)    #0x=self.c2(x)    #1co.append(x)x=self.c3(x)    #2co.append(x)#上采样特征聚合网络x=self.d1(x)    #3ups.append(x)   x=torch.cat((x,co[1]), dim=1)  #4x=self.d2(x)    #5ups.append(x) x=torch.cat((x,co[0]), dim=1)  #6x=self.d3(x)    #7ups.append(x)ups=self.fusion(ups)if len(ups) > 1:x = torch.cat(ups, dim=1)  #6b, c, _, _ = x.size()x=self.Se(x).view(b, c, 1, 1) *x   elif len(ups) == 1:x = ups[0]data_dict['spatial_features_2d'] = xreturn data_dict
