统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息

一、背景

二、说明

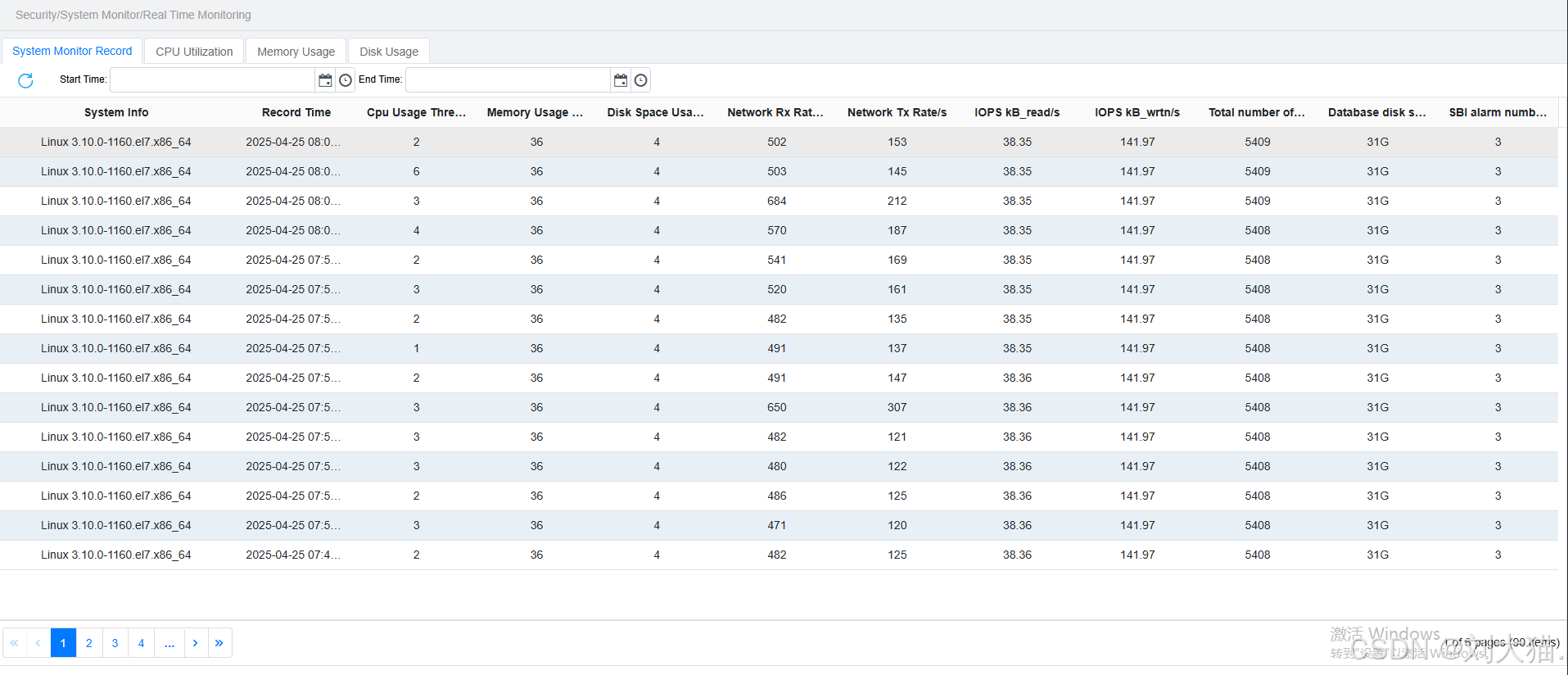

三、页面

字段介绍

• System Info：系统信息
• Record Time：记录时间
• Cpu Usage Threshold（%）：Cpu使用率阈值（%）
• Memory Usage Threshold（%）：内存使用率阈值（%）
• Disk Space Usage Threshold（%）：磁盘空间使用率阈值（%）
• Network Rx Rate/s：网络接收数据包速率/s
• Network Tx Rate/s：网络发送数据包速率/s
• IOPS kB_read/s：IOPS读取数据量/s
• IOPS kB_wrtn/s：IOPS写入数据量/s
• Total number of stored queue operations/s：存储队列操作总数/s
• Database disk space used in the file system：文件系统中数据库磁盘空间占用大小
• SBI alarm number/s：南向告警数量/s

四、代码

前端

MonitorServiceProcessPage.vue

<template><BasicLayout :left='left' :middle='middle' :right='right'><template v-slot:right_view><div class='h100vh-100'><MonitorServiceProcessTableButton @notice='notice'></MonitorServiceProcessTableButton><MonitorServiceProcessTable ref="monitorServiceProcess"></MonitorServiceProcessTable></div></template></BasicLayout>
</template><script>
import BasicLayout from '@/layouts/BasicLayout';
import MonitorServiceProcessTableButton from "@/views/monitor/monitorServiceProcess/MonitorServiceProcessTableButton";
import MonitorServiceProcessTable from "@/views/monitor/monitorServiceProcess/MonitorServiceProcessTable";export default {name: "monitorServiceProcessPage",components:{BasicLayout,MonitorServiceProcessTableButton,MonitorServiceProcessTable},data() {return {left: {show: false,name: ''},middle: {show: false,name: ''},right: {show: true,crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.task.monitoringServiceProcess')}`}};},methods: {notice(type) {switch (type) {case 'refresh':this.$refs.monitorServiceProcess.getMonitorServiceProcessListData();break;case 'doActiveTask':this.$refs.monitorServiceProcess.doActiveTask();break;case 'doUnactiveTask':this.$refs.monitorServiceProcess.doUnactiveTask();break;default:}}}
}
</script><style scoped></style>

MonitorServiceProcessTable.vue

<template><div class='h100-40 width-100vw h-scroll'><ejs-grid ref='grid' height='calc(100% - 0px)' :dataSource='monitorServiceProcessData' :contextMenuItems="contextMenuItems" :contextMenuOpen='menuBeforeOpenFunc' :contextMenuClick='menuClickFunc':selectionSettings='selectionOptions' :allowReordering='true' :allowResizing='true' ><e-columns><e-column type='checkbox' textAlign='Center' width='66'></e-column><e-column field='componentName' :headerText='$t("Topo.service") + $t("DeployManagement.type")' textAlign='Center' minWidth='10' clipMode='EllipsisWithTooltip'></e-column><e-column field='state' :headerText='$t("DeployManagement.runStatus")' :disableHtmlEncode='false' :formatter='formatActiveState' textAlign='Center' minWidth='10' clipMode='EllipsisWithTooltip'></e-column><e-column field='description' :headerText='$t("MCS.description")' textAlign='Center' minWidth='10' clipMode='EllipsisWithTooltip'></e-column><e-column field='activeTime' :headerText='$t("Monitor.systemLog.productStart")' textAlign='Center' minWidth='10' type='date' :format='dateFormatOptions' clipMode='EllipsisWithTooltip'></e-column><e-column field='unactiveTime' :headerText='$t("Pm.hangupTime")' textAlign='Center' minWidth='10' type='date' :format='dateFormatOptions' clipMode='EllipsisWithTooltip'></e-column></e-columns></ejs-grid><ejs-pager ref='pager' @click='getMonitorServiceProcessListData' :currentPage='page.pageNo' :pageSize='page.pageSize' :totalRecordsCount='page.totalCount' :pageCount='page.pageCount'></ejs-pager></div>
</template><script>
import { EventBus } from '../../../plugins/eventBus';export default {name: "monitorServiceProcessTable",data() {return {selectionOptions: { type: 'Multiple' },dateFormatOptions: { type: 'date', format: 'yyyy-MM-dd HH:mm:ss' },contextMenuItems: [{text: `${this.$t('Alarm.refresh')}`}, {text: `${this.$t('Monitor.systemLog.startup')}`}, {text: `${this.$t('Monitor.systemLog.shutdown')}`}],page: {pageNo: 1,pageSize: 15,totalCount: 3,pageCount: 1},monitorServiceProcessData: [],}},methods: {formatActiveState(grids, data) {let color = '';switch (data.state) {case 'down':color = 'red';break;case 'up':color = 'green';break;case 'exception':color = 'orange';break;default:break;}return `<span style='background-color:${color};font-size: 12px;display: inline-block;width: 55px;height: 22px;color: #fff;line-height: 22px;' >${data.state}</span>`;},getCheckedData(selectOnly) {// false: 不支持多选   true: 支持多选const selectedRecords = this.$refs.grid.getSelectedRecords();if (selectedRecords.length < 1) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Alarm.no_checked')});return false;}if (selectedRecords.length > 1 && !selectOnly) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});return false;}return selectedRecords;},getCheckedVals() {const ids = [];const checkedData = this.getCheckedData(true);for (let i = 0; i < checkedData.length; i++) {ids.push(checkedData[i].id);}return ids;},//批量查询getMonitorServiceProcessListData() {console.log("******getMonitorServiceProcessListData()")//获取表格数据const This = this;This.$axios.get('/lte/ems/oss/component/state', {}).then((response) => {if (response && response.data.errorCode === 'SUCCESS') {const result = response.data.resultVal;let getResult = resultgetResult.forEach(item => {if (item.description != "" || item.description != null || item.description != undefined) {item.description = this.$t(item.description);}})This.monitorServiceProcessData = getResult;}});},//启动服务doActiveTask() {console.log("******doActiveTask()")const This = this;const checkedData = This.getCheckedData(true);const list = [];for (let i = 0; i < checkedData.length; i++) {list.push({state: 1, id: checkedData[i].id, activeTime: new Date()});}let str = This.$t('Track.activation');if (checkedData) {This.$layer.confirm({title: this.$t('System.tip'),msg: `${str}?`,btn1: {msg: this.$t('Alarm.cancel')},btn2: {msg: this.$t('Alarm.confirm'),func: () => {This.$axios.post('/lte/ems/oss/component/updateMonitorServiceProcess', {list: list}).then((response) => {if (response && response.data.errorCode === 'SUCCESS') {EventBus.$emit('toast', {type: 'success', content: this.$t('Alarm.success')});} else if (response && response.data.errorCode === '1001') {EventBus.$emit('toast', {type: 'error', content: this.$t(response.data.errorString)});} else if (response && response.data.errorCode === '16002') {EventBus.$emit('toast', {type: 'error', content: this.$t('ErrorCode.16002')});} else {EventBus.$emit('toast', {type: 'error', content: this.$t('Alarm.error')});}This.getMonitorServiceProcessListData();});}}});}},//挂起服务doUnactiveTask() {console.log("******doUnactiveTask()")const This = this;const checkedData = This.getCheckedData(true);const list = [];for (let i = 0; i < checkedData.length; i++) {list.push({state: 0, id: checkedData[i].id, unactiveTime: new Date()});}let str = This.$t('Track.hangup');if (checkedData) {This.$layer.confirm({title: this.$t('System.tip'),msg: `${str}?`,btn1: {msg: this.$t('Alarm.cancel')},btn2: {msg: this.$t('Alarm.confirm'),func: () => {This.$axios.post('/lte/ems/oss/component/updateMonitorServiceProcess', {list: list}).then((response) => {if (response && response.data.errorCode === 'SUCCESS') {EventBus.$emit('toast', {type: 'success', content: this.$t('Alarm.success')});} else if (response && response.data.errorCode === '1002') {EventBus.$emit('toast', {type: 'error', content: this.$t(response.data.errorString)});} else if (response && response.data.errorCode === '16001') {EventBus.$emit('toast', {type: 'error', content: this.$t('ErrorCode.16001')});} else {EventBus.$emit('toast', {type: 'error', content: this.$t('Alarm.error')});}This.getMonitorServiceProcessListData();});}}});}},menuBeforeOpenFunc(menuArgs) { // 屏蔽表头的右键事件if (!menuArgs.rowInfo.rowIndex && menuArgs.rowInfo.rowIndex !== 0) {menuArgs.cancel = true;}const childList = menuArgs.element.querySelectorAll('li.e-menu-item');if (this.getCheckedData(true).length > 1) {childList[2].style.display = 'none';} else {childList[2].style.display = 'block';}},menuClickFunc(menuArgs) { // 为右键分配事件console.log("******menuArgs:", menuArgs)switch (menuArgs.element.innerText) {case `${this.$t('Alarm.refresh')}`:this.getMonitorServiceProcessListData();break;case `${this.$t('Monitor.systemLog.startup')}`:this.doActiveTask();break;case `${this.$t('Monitor.systemLog.shutdown')}`:this.doUnactiveTask();break;default:}}},mounted() {this.getMonitorServiceProcessListData();}
}
</script><style scoped></style>

MonitorServiceProcessTableButton.vue

<template><div class='h-toolbarBg'><ejs-toolbar><e-items><e-item prefixIcon='icon hero-icon hero-icon-refresh' :tooltipText='$t("Alarm.refresh")' :click='notices' eventType='refresh'></e-item><e-item prefixIcon='icon hero-icon hero-icon-start-up' :tooltipText='$t("Monitor.systemLog.startup")' :click='notices' eventType='doActiveTask'></e-item><e-item prefixIcon='icon hero-icon hero-icon-disable' :tooltipText='$t("Monitor.systemLog.shutdown")' :click='notices' eventType='doUnactiveTask'></e-item></e-items></ejs-toolbar></div>
</template><script>
export default {name: "monitorServiceProcessTableButton",methods: {notices(args) {this.$emit('notice', args.item.eventType);}}
}
</script><style scoped></style>

addMonitorTask.vue

<template><div id="addReportTaskContainer"><form id="monitorTaskForm"><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.taskName')}}:</div><input name="taskName" :placeholder="$t('Monitor.task.taskName')" v-model="monitorTask.taskName"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox" style="display: none"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.product')}}:</div><ejs-dropdownlist :dataSource="productList" v-model="monitorTask.product" name="product":fields="fieldsFormat" @change="productChange" ></ejs-dropdownlist><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.diskSpaceThreshold')}}:</div><input name="spaceThreshold" :placeholder="$t('Monitor.record.diskSpaceThreshold')" v-model="monitorThresholdPo.spaceThreshold"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div></div><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.cpuThreshold')}}:</div><input name="cpuThreshold" :placeholder="$t('Monitor.record.cpuThreshold')" v-model="monitorThresholdPo.cpuThreshold"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.memoryThreshold')}}:</div><input name="memoryThreshold" :placeholder="$t('Monitor.record.memoryThreshold')" v-model="monitorThresholdPo.memoryThreshold"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div></div><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleStart')}}:</div><ejs-datetimepicker :format="dateFormat" v-model="monitorTask.sampleStart" ref="startTime" name="sampleStart"class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datetimepicker><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleEnd')}}:</div><ejs-datetimepicker :format="dateFormat" v-model="monitorTask.sampleEnd" ref="endTime" name="sampleEnd"class="e-input" :allowEdit="false" :min="monitorTask.sampleStart" @keydown.native="stopEvent" :locale="locale"></ejs-datetimepicker><div class="error"></div></div></div></div></div></form></div>
</template><script>import { CheckBoxSelection } from '@syncfusion/ej2-vue-dropdowns';import { FormValidator } from "@syncfusion/ej2-vue-inputs";import mixin from '../../../mixin/mixin';export default {name: 'AddReportTask',mixins: [mixin],displayFlag : 'none',props: {baseType: Number,},components: {},data() {return {formValidator: '',dateFormat: "yyyy-MM-dd HH:mm:ss",locale: localStorage.getItem('locale'),currentDay: new Date(),productList: [],monitorTask: {taskName: '',product: 'PLATFORM',sampleStart: '',sampleEnd: '',},monitorThresholdPo: {cpuThreshold: '',memoryThreshold: '',spaceThreshold: '',},fieldsFormat: {text: "text",value: "value"},formatList: [{ text: "csv", value: "csv" },{ text: "excel", value: "excel" },],validateOptions: {customPlacement: function(inputElement, errorElement) {console.log("******validateOptions-inputElement:", inputElement)console.log("******validateOptions-errorElement:", errorElement)inputElement = inputElement.closest('.form-group').querySelector('.error');inputElement.parentElement.appendChild(errorElement);},rules: {'taskName': {required: [true, `${this.$t('Monitor.placeholder.taskName')}`],},// 'product': {//     required: [true, `${this.$t('Monitor.placeholder.product')}`],// },'cpuThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'spaceThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'memoryThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'sampleStart': {required: [true, `${this.$t('Monitor.placeholder.sampleStart')}`],},'sampleEnd': {required: [true, `${this.$t('Monitor.placeholder.sampleEnd')}`],},}}}},methods: {init(){this.getProductList();this.formValidator = new FormValidator('#monitorTaskForm', this.validateOptions);},getProductList() {this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {let resultVal = response.data.resultVal;resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));for (let i = 0; i < resultVal.length; i++) {this.productList.push({text: resultVal[i],value: resultVal[i],});}});},productChange() {this.monitorTask.product = msg.value;},getMonitorTask() {return {monitorTask: {taskName: this.monitorTask.taskName,product: this.monitorTask.product,sampleStart: (new Date(this.monitorTask.sampleStart)).getTime(),sampleEnd: (new Date(this.monitorTask.sampleEnd)).getTime(),},monitorThresholdPo: {cpuThreshold: this.monitorThresholdPo.cpuThreshold,memoryThreshold: this.monitorThresholdPo.memoryThreshold,spaceThreshold: this.monitorThresholdPo.spaceThreshold,},}},validation() {let status = this.formValidator.validate();return status;},stopEvent(event) {if (event.keyCode == 13) {event.cancelBubble = true;event.returnValue = false;return false;}}}};
</script>

productOperation.vue

<template><div><div class="h-toolbarBg"><ejs-toolbar :items="toolbarItems"></ejs-toolbar></div><div class="h100-80 h-scroll"><ejs-grid :dataSource="monitorTaskLogData" :allowPaging="true" ref="grid" :allowExcelExport='true' ><e-columns><!-- <e-column type="checkbox" width="50" textAlign="center"></e-column> --><e-column field="code" :visible="false"></e-column><e-column field="name" :headerText="$t('Monitor.record.product')" width="120" textAlign="Center"></e-column></e-columns></ejs-grid></div></div>
</template>
<script>
import BasicLayout from '../../../layouts/BasicLayout';
import { EventBus } from '../../../plugins/eventBus';export default {name: 'monitorSystemLog',components: {BasicLayout,},data() {return {toolbarItems: [{ prefixIcon: 'icon hero-icon hero-icon-confirm', tooltipText: this.$t('Monitor.systemLog.startup'), click: this.startup },{ prefixIcon: 'icon hero-icon hero-icon-disable', tooltipText: this.$t('Monitor.systemLog.shutdown'), click: this.shutdown },],monitorTaskLogData: [],product: '',productList: [],};},mounted() {let That = this;},methods: {getproductList() {const url = '/lte/ems/sys/monitor/log/getProducts';const That = this;this.axios.get(url).then(response => {let productList = response.data.filter(item => !item.name.includes('ems_5gc') && !item.name.includes('ems_gnb') && !item.name.includes('ems_tr069'));That.monitorTaskLogData = productList;});},startup() {const record = this.getRecord();debuggerif (record.length === 0) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.selectOne')});return null;}if (record.length !== 1) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});return null;}const url = '/lte/ems/sys/monitor/log/startShell?code=' + record[0].code;this.axios.get(url).then(response => {const result = response.data;if(result) {EventBus.$emit('toast', {type: 'success', content: this.$t('Monitor.systemLog.startupSuccess')});} else {EventBus.$emit('toast', {type: 'error', content: this.$t('Monitor.systemLog.startupFail')});}});},shutdown() {const record = this.getRecord();debuggerif (record.length === 0) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.selectOne')});return null;}if (record.length !== 1) {EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});return null;}const url = '/lte/ems/sys/monitor/log/shutdownShell?code=' + record[0].code;this.axios.get(url).then(response => {const result = response.data;if(result) {EventBus.$emit('toast', {type: 'success', content: this.$t('Monitor.systemLog.shutdownSuccess')});} else {EventBus.$emit('toast', {type: 'error', content: this.$t('Monitor.systemLog.shutdownFail')});}});},getRecord() {const result = this.$refs.grid.getSelectedRecords();if (result === null || result === '') {this.$parent.showToast('warning',`${this.$t('Common.tips.noSelect')}`);return null;}return result;},},watch: {screenHeight(val) {this.screenHeight = val;}}
};
</script>

showMonitorTask.vue

<template><div id="addReportTaskContainer"><form id="reportTaskForm"><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.taskName')}}:</div><input name="taskName" v-model="monitorTask.taskName" class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox" style="display: none"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.product')}}:</div><input name="product" v-model="monitorTask.product"  readonly="readonly"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.diskSpaceThreshold')}}:</div><input name="spaceThreshold" :placeholder="$t('Monitor.record.diskSpaceThreshold')" v-model="monitorThresholdPo.spaceThreshold" class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div></div><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.cpuThreshold')}}:</div><input name="cpuThreshold" v-model="monitorThresholdPo.cpuThreshold" class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.memoryThreshold')}}:</div><input name="memoryThreshold" v-model="monitorThresholdPo.memoryThreshold"class="e-input e-input-group" maxlength="20" /><div class="error"></div></div></div></div></div><div class="row h-row-inputBox"><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleStart')}}:</div><ejs-datepicker :format="dateFormat" v-model="monitorTask.sampleStart" ref="startTime" name="sampleStart" readonly="readonly"class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datepicker></div></div></div><div class="col-sm-6 h-col-inputBox"><div class="form-group"><div class="e-float-input"><div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleEnd')}}:</div><ejs-datepicker :format="dateFormat" v-model="monitorTask.sampleEnd" ref="endTime" name="sampleEnd" readonly="readonly"class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datepicker></div></div></div></div></form></div>
</template>
<script>import { CheckBoxSelection } from '@syncfusion/ej2-vue-dropdowns';import { FormValidator } from "@syncfusion/ej2-vue-inputs";import mixin from '../../../mixin/mixin';export default {name: 'AddReportTask',mixins: [mixin],displayFlag : 'none',props: {baseType: Number,},components: {},data() {return {formValidator: '',dateFormat: "yyyy-MM-dd HH:mm:ss",locale: localStorage.getItem('locale'),currentDay: new Date(),monitorTask: {taskId:'',taskName: '',product: '',sampleStart: '',sampleEnd: '',},monitorThresholdPo: {cpuThreshold: '',memoryThreshold: '',spaceThreshold: '',},productList: [],fieldsFormat: {text: "text",value: "value"},formatList: [{ text: "csv", value: "csv" },{ text: "excel", value: "excel" },],validateOptions: {customPlacement: function(inputElement, errorElement) {console.log("******validateOptions-inputElement:", inputElement)console.log("******validateOptions-errorElement:", errorElement)inputElement = inputElement.closest('.form-group').querySelector('.error');inputElement.parentElement.appendChild(errorElement);},rules: {'taskName': {required: [true, `${this.$t('Monitor.placeholder.taskName')}`],},// 'product': {//     required: [true, `${this.$t('Monitor.placeholder.product')}`],// },'cpuThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'spaceThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'memoryThreshold': {number: [true, this.$t('MCS.insertNum')],max: [100, this.$t('System.input1t100')],},'sampleStart': {required: [true, `${this.$t('Monitor.placeholder.sampleStart')}`],},'sampleEnd': {required: [true, `${this.$t('Monitor.placeholder.sampleEnd')}`],},}}}},methods: {init(editId){this.monitorTask.taskId = editIdconst baseUrl = '/lte/ems/sys/monitor/task/queryId';const params = { params: {id: editId} };const That = this;this.axios.get(baseUrl, params).then(response => {const result = response.data;var monitorTask = result.monitorTask;this.monitorTask.taskName = monitorTask.taskName;this.monitorTask.product = monitorTask.product;if(monitorTask.sampleStart != null && monitorTask.sampleStart != ''){this.monitorTask.sampleStart = new Date(monitorTask.sampleStart).Format("yyyy-MM-dd HH:mm:ss");}if(monitorTask.sampleEnd != null && monitorTask.sampleEnd != ''){this.monitorTask.sampleEnd = new Date(monitorTask.sampleEnd).Format("yyyy-MM-dd HH:mm:ss");}var monitorThresholdPo = result.monitorThresholdPo;this.monitorThresholdPo.cpuThreshold = monitorThresholdPo.cpuThreshold;this.monitorThresholdPo.memoryThreshold = monitorThresholdPo.memoryThreshold;this.monitorThresholdPo.spaceThreshold = monitorThresholdPo.spaceThreshold;});this.formValidator = new FormValidator('#reportTaskForm', this.validateOptions);},getMonitorTask() {return {monitorTask: {id:this.monitorTask.taskId,taskName: this.monitorTask.taskName,product: this.monitorTask.product,sampleStart: (new Date(this.monitorTask.sampleStart)).getTime(),sampleEnd: (new Date(this.monitorTask.sampleEnd)).getTime(),},monitorThresholdPo: {cpuThreshold: this.monitorThresholdPo.cpuThreshold,memoryThreshold: this.monitorThresholdPo.memoryThreshold,spaceThreshold: this.monitorThresholdPo.spaceThreshold,},}},validation() {let status = this.formValidator.validate();return status;},stopEvent(event) {if (event.keyCode == 13) {event.cancelBubble = true;event.returnValue = false;return false;}}}};
</script>

MonitorSystemLog.vue

<template><BasicLayout :left="left" :middle="middle" :right="right"><template v-slot:right_view><div class="h-toolbarBg"><!-- <ejs-toolbar :items="toolbarItems"> --><ejs-toolbar><e-items><e-item v-if = 'isShow_Operation' prefixIcon='icon hero-icon hero-icon-business-operation' :tooltipText="$t('Monitor.systemLog.operation')" :click="operationShow"></e-item><e-item v-if = 'isShow_Refresh' prefixIcon='icon hero-icon hero-icon-refresh' :tooltipText="$t('Alarm.refresh')" :click="refreshGrid"></e-item></e-items> </ejs-toolbar><div class='h-inputBox'>{{$t('Monitor.task.product')}}:<ejs-dropdownlist :dataSource="productList" v-model="product":fields="fieldsType" name="productCheck"  @change="productChange" ></ejs-dropdownlist></div>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<div class='h-inputBox'>{{$t('Monitor.systemLog.logType')}}:<ejs-dropdownlist :dataSource="logTypeList" v-model="logType":fields="fieldsType" name="logTypeCheck"  @change="logTypeChange" ></ejs-dropdownlist></div></div><div class="h100-80 h-scroll"><ejs-grid :dataSource="monitorSystemLogData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' ><e-columns><!-- <e-column type="checkbox" width="50" textAlign="center"></e-column> --><e-column field="id" :visible="false"></e-column><e-column field="product" :headerText="$t('Monitor.systemLog.product')" width="120" textAlign="Center"></e-column><e-column field="systemInfo" :headerText="$t('Monitor.systemLog.systemInfo')" width="120" textAlign="Center"></e-column><!-- <e-column field="processInfo" :headerText="$t('Monitor.systemLog.processInfo')" width="120" textAlign="Center"></e-column> --><e-column field="logType" :headerText="$t('Monitor.systemLog.logType')" :formatter='logTypeFormat' width="120" textAlign="Center"></e-column><e-column field="recordTime" :headerText="$t('Monitor.systemLog.recordTime')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="productStart" :headerText="$t('Monitor.systemLog.productStart')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="productEnd" :headerText="$t('Monitor.systemLog.productEnd')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="message" :headerText="$t('Monitor.systemLog.message')" width="120" textAlign="Center"></e-column></e-columns></ejs-grid><ejs-pagerref="pager":pageSize="pageSettings.pageSize":pageCount="page.pageCount":currentPage="page.pageNo":totalRecordsCount="page.totalRecordsCount"@click="getMonitorTaskList"></ejs-pager></div><CustomDialog ref="productOperationDialog" v-bind:element="operatDialog.element" v-bind:styles="operatDialog.styles" ><template v-slot:dialog-content><ProductOperation ref="productOperationPage"></ProductOperation></template></CustomDialog></template></BasicLayout>
</template>
<script>
import CustomDialog from "../../components/common/CustomDialog";
import BasicLayout from '../../layouts/BasicLayout';
import {ExcelExport} from '@syncfusion/ej2-vue-grids';
import ProductOperation from './monitorTask/productOperation';export default {name: 'monitorSystemLog',provide: {grid: [ExcelExport]},components: {CustomDialog,BasicLayout,ProductOperation,},data() {return {isShow_Operation: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Operation,isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Refresh,monitorSystemLogData: [],left: { show: false, name: '' },middle: { show: false, name: '' },right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.systemLog.titleName')}` },toolbarItems: [{ prefixIcon: 'icon hero-icon hero-icon-business-operation', tooltipText: this.$t('Monitor.systemLog.operation'), click: this.operationShow },{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },],product: '',logType: '',productList: [],logTypeList: [{ text: `${this.$t('MCS.all')}`, value: "" },{ text: `${this.$t('Monitor.systemLog.run')}`, value: "run" },{ text: `${this.$t('Monitor.systemLog.start')}`, value: "start" },],pageSettings: { pageSize: 15 },page: {pageCount: 4,totalRecordsCount: 0,pageNo: 1,},dateFormat: {type: 'date', format: 'yyyy-MM-dd HH:mm:ss'},fieldsType: {text: "text",value: "value"},addStatus: true,operatDialog: {element: {target: '#app',isClose: true,refName: 'productOperationDialog',buttonGroup: [{click: this.dialogHide,buttonModel: { content: `${this.$t('Common.close')}` }},],title: `${this.$t('Monitor.systemLog.operation')}`},styles: {width: '500px',height: '500px',model: true,visible: false}},screenHeight: document.body.clientHeight - 240};},mounted() {this.getMonitorTaskList();this.getProductList();let That = this;},methods: {logTypeFormat(grids, data) {if(data.logType == 'run'){return `${this.$t('Monitor.systemLog.run')}`;}else if(data.logType == 'start'){return `${this.$t('Monitor.systemLog.start')}`;}},getMonitorTaskList() {const url = '/lte/ems/sys/monitor/log/queryMonitorSysLog';this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;const params = { params: {product: this.product,logType: this.logType,pageNo: this.page.pageNo,pageSize: this.pageSettings.pageSize} };const That = this;this.axios.get(url, params).then(response => {const result = response.data.result;result.forEach((v) => {if (!!v.recordTime) {let date = new Date();date.setTime(v.recordTime);v.recordTime = date;}if (!!v.productStart) {let date = new Date();date.setTime(v.productStart);v.productStart = date;}if (!!v.productEnd) {let date = new Date();date.setTime(v.productEnd);v.productEnd = date;}// if (v.logType =='start' && v.status == '0') {//   v.productEnd = null;// }});That.monitorSystemLogData = result;That.page.totalRecordsCount = response.data.totalCount;});},productChange(msg){this.product = msg.value;this.getMonitorTaskList();},operationShow() {this.$refs.productOperationPage.getproductList();this.$refs.productOperationDialog.show();},logTypeChange(msg){this.logType = msg.value;this.getMonitorTaskList();},getProductList() {this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {let resultVal = response.data.resultVal;resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));this.productList.push({ text: `${this.$t('MCS.all')}`, value: "" });for (let i = 0; i < resultVal.length; i++) {this.productList.push({text: resultVal[i],value: resultVal[i],});}});},dialogHide() {this.$refs.productOperationDialog.clear();this.$refs.productOperationDialog.close();},filterMonitorTask() {this.getMonitorTaskList();},refreshGrid() {this.product='';this.logType='';this.getMonitorTaskList();},},watch: {screenHeight(val) {this.screenHeight = val;}}
};
</script>

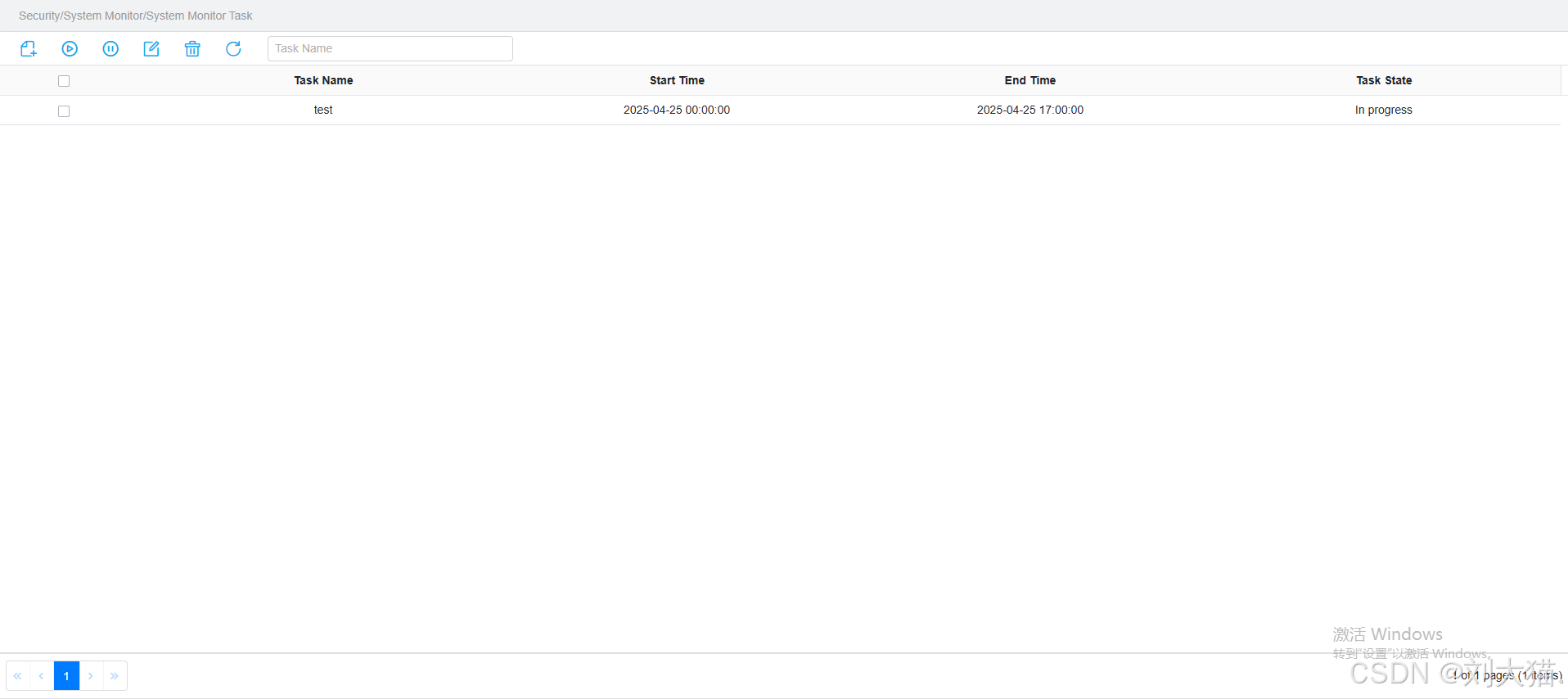

MonitorTask.vue

<template><BasicLayout :left="left" :middle="middle" :right="right"><template v-slot:right_view><div class="h-toolbarBg"><!-- <ejs-toolbar :items="toolbarItems"> --><ejs-toolbar><e-items><e-item  v-if='isShow_Add' prefixIcon='icon hero-icon hero-icon-add' :tooltipText="$t('Security.add')" :click="showAddDialog"></e-item><e-item  v-if='isShow_Start' prefixIcon='icon hero-icon hero-icon-start-up' :tooltipText="$t('Pm.startUp')" :click="activeMonitorTask"></e-item><e-item  v-if='isShow_Pause' prefixIcon='icon hero-icon hero-icon-disable' :tooltipText="$t('System.deactiveTask')" :click="deactiveMonitorTask"></e-item><e-item  v-if='isShow_Modify' prefixIcon='icon hero-icon hero-icon-edit' :tooltipText="$t('Track.detail')" :click="showEditDialog"></e-item><e-item  v-if='isShow_Delete' prefixIcon='icon hero-icon hero-icon-remove' :tooltipText="$t('Security.delete')" :click="deleteMonitorTask"></e-item><e-item  v-if='isShow_Refresh' prefixIcon='icon hero-icon hero-icon-refresh' :tooltipText="$t('Alarm.refresh')" :click="refreshGrid"></e-item></e-items> </ejs-toolbar><div class='h-inputBox'><ejs-textbox v-model='keyword' :placeholder='$t("Monitor.task.taskName")' @keyup.enter.native="filterMonitorTask" maxLength='20'></ejs-textbox></div></div><div class="h100-80 h-scroll"><ejs-grid :dataSource="monitorTaskData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' ><e-columns><e-column type="checkbox" width="50" textAlign="center"></e-column><e-column field="id" :visible="false"></e-column><e-column field="taskName" :headerText="$t('Monitor.task.taskName')" width="120" textAlign="Center"></e-column><!--<e-column field="product" :headerText="$t('Monitor.task.product')" width="120" textAlign="Center"></e-column>--><e-column field="sampleStart" :headerText="$t('Monitor.task.sampleStart')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="sampleEnd" :headerText="$t('Monitor.task.sampleEnd')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="exeState" :headerText="$t('Monitor.task.exeState')" :formatter='exeStateFormat' width="120" textAlign="Center"></e-column></e-columns></ejs-grid><ejs-pagerref="pager":pageSize="pageSettings.pageSize":pageCount="page.pageCount":currentPage="page.pageNo":totalRecordsCount="page.totalRecordsCount"@click="getMonitorTaskList"></ejs-pager></div><CustomDialog ref="addMonitorTaskDialog" v-bind:element="addDialog.element" v-bind:styles="addDialog.styles" ><template v-slot:dialog-content><AddMonitorTask ref="addMonitorTaskPage"></AddMonitorTask></template></CustomDialog><CustomDialog ref="showMonitorTaskDialog" v-bind:element="editDialog.element" v-bind:styles="editDialog.styles" ><template v-slot:dialog-content><ShowMonitorTask ref="showMonitorTaskPage"></ShowMonitorTask></template></CustomDialog></template></BasicLayout>
</template>
<script>
import CustomDialog from "../../components/common/CustomDialog";
import BasicLayout from '../../layouts/BasicLayout';
import AddMonitorTask from './monitorTask/addMonitorTask';
import ShowMonitorTask from './monitorTask/showMonitorTask';
import {ExcelExport} from '@syncfusion/ej2-vue-grids';
import {EventBus} from "../../plugins/eventBus";export default {name: 'monitorTask',provide: {grid: [ExcelExport]},components: {CustomDialog,BasicLayout,AddMonitorTask,ShowMonitorTask,},data() {return {isShow_Add: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Add,isShow_Start: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Start,isShow_Pause: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Pause,isShow_Modify: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Modify,isShow_Delete: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Delete,isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Refresh,monitorTaskData: [],left: { show: false, name: '' },middle: { show: false, name: '' },right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.task.titleName')}` },toolbarItems: [{ prefixIcon: 'icon hero-icon hero-icon-add', tooltipText: this.$t('Security.add'), click: this.showAddDialog },{ prefixIcon: 'icon hero-icon hero-icon-start-up', tooltipText: this.$t('Pm.startUp'), click: this.activeMonitorTask },{ prefixIcon: 'icon hero-icon hero-icon-disable', tooltipText: this.$t('System.deactiveTask'), click: this.deactiveMonitorTask },{ prefixIcon: 'icon hero-icon hero-icon-edit', tooltipText: this.$t('Track.detail'), click: this.showEditDialog },{ prefixIcon: 'icon hero-icon hero-icon-remove', tooltipText: this.$t('Security.delete'), click: this.deleteMonitorTask },{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },],keyword: '',pageSettings: { pageSize: 15 },page: {pageCount: 4,totalRecordsCount: 0,pageNo: 1,},dateFormat: {type: 'date', format: 'yyyy-MM-dd HH:mm:ss'},addStatus: true,addDialog: {element: {target: '#app',isClose: true,refName: 'addMonitorTaskDialog',buttonGroup: [{click: this.dialogHide,buttonModel: { content: `${this.$t('Common.cancel')}` }},{click: this.addMonitorTask,buttonModel: { content: `${this.$t('Common.ok')}`, cssClass: 'primary-btn' }}],title: `${this.$t('Pm.addMonitorTask')}`},styles: {width: '860px',height: '700px',model: true,visible: false}},editDialog: {element: {target: '#app',isClose: true,refName: 'showMonitorTaskDialog',buttonGroup: [{click: this.modiyMonitorTask,buttonModel: {content: `${this.$t('Common.ok')}`, cssClass: 'primary-btn' }},{click: this.dialogHide,buttonModel: { content: `${this.$t('Common.close')}` }},],title: `${this.$t('Pm.updateMonitorTask')}`},styles: {width: '860px',height: '700px',model: true,visible: false}},screenHeight: document.body.clientHeight - 240};},mounted() {this.getMonitorTaskList();let That = this;},methods: {exeStateFormat(grids, data) {if(data.exeState == 0){return `${this.$t('Monitor.task.notStarted')}`;}else if(data.exeState == 1){return `${this.$t('Monitor.task.inUse')}`;}else if(data.exeState == 2){return `${this.$t('Monitor.task.exeFinish')}`;}else if(data.exeState == 3){return `${this.$t('System.deactiveTask')}`;}},getMonitorTaskList() {const url = '/lte/ems/sys/monitor/task/query';this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;const params = { params: {taskName: this.keyword,pageNo: this.page.pageNo,pageSize: this.pageSettings.pageSize} };const That = this;this.axios.get(url, params).then(response => {const result = response.data.result;result.forEach((v) => {if (!!v.sampleStart) {let date = new Date();date.setTime(v.sampleStart);v.sampleStart = date;}if (!!v.sampleEnd) {let date = new Date();date.setTime(v.sampleEnd);v.sampleEnd = date;}});That.monitorTaskData = result;That.page.totalRecordsCount = response.data.totalCount;});},filterMonitorTask() {this.getMonitorTaskList();},getRecord() {const result = this.$refs.grid.getSelectedRecords();if (result === null || result === '') {this.$parent.showToast('warning',`${this.$t('Common.tips.noSelect')}`);return null;}return result;},showAddDialog() {this.$refs.addMonitorTaskPage.init();this.$refs.addMonitorTaskDialog.show();},showEditDialog() {const record = this.getRecord();if (record.length === 0) {this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);return null;}if (record.length !== 1) {this.$parent.showToast('warning',`${this.$t('Common.tips.onlyOneSelect')}`);return null;}for(let i=0; i<record.length; i++){if(1== record[i].exeState){this.$parent.showToast('warning',`${this.$t('Monitor.task.activeMonitor')}`);return null;}}this.editId = record[0].id;this.$refs.showMonitorTaskPage.init(this.editId);this.$refs.showMonitorTaskDialog.show();},activeMonitorTask() {const url = "/lte/ems/sys/monitor/task/active";let record = this.getRecord();if (record == null) {return null;}if (record.length === 0) {this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);return null;} else if (record.length > 1) {EventBus.$emit('toast', { type: 'warning', content: this.$t('DeployManagement.pleaseSelectOneData') });return false;}for(let i=0; i<record.length; i++){if(3 !== record[i].exeState){this.$parent.showToast('warning',`${this.$t('Monitor.task.activeMonitor')}`);return null;}}for(let i=0; i<this.monitorTaskData.length; i++){if(1 == this.monitorTaskData[i].exeState){this.$parent.showToast('warning',`${this.$t('Monitor.task.oneActiveMonitor')}`);return null;}}let That = this;const params = [];record.forEach((r, i) => {params.push(r.id);});var currentDate = new Date();if (currentDate > record[0].sampleEnd) {That.$parent.showToast('error',  `${this.$t('Common.tips.taskExpired')}`);return null;}this.axios.post(url, params).then(response => {const result = response.data;if(result){That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);That.getMonitorTaskList();}else{That.$parent.showToast('error',  `${this.$t('Common.tips.failure')}`);}});},deactiveMonitorTask() {const url = "/lte/ems/sys/monitor/task/deactive";let record = this.getRecord();if (record == null) {return null;}if (record.length === 0) {this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);return null;}for(let i=0; i<record.length; i++){if(1 !== record[i].exeState){this.$parent.showToast('warning',`${this.$t('Monitor.task.deactiveMonitor')}`);return null;}}let That = this;const params = [];record.forEach((r, i) => {params.push(r.id);});this.axios.post(url, params).then(response => {const result = response.data;if(result){That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);That.getMonitorTaskList();}else{That.$parent.showToast('error',  `${this.$t('Common.tips.failure')}`);}});},deleteMonitorTask() {const record = this.getRecord();if (record.length === 0) {this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);return null;}for(let i=0; i<record.length; i++){if(1 === record[i].exeState){this.$parent.showToast('warning',`${this.$t('Monitor.task.deleteMonitor')}`);return null;}}const url = '/lte/ems/sys/monitor/task/delete';const params = [];record.forEach((r, i) => {params.push(r.id);});let That = this;this.$layer.confirm({msg: `${this.$t('Common.tips.confirmTip')}`,btn1: {msg: `${this.$t('Common.cancel')}`},btn2: {msg: `${this.$t('Common.ok')}`,func: () => {That.axios.post(url, params).then(response => {if (response.data) {That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);That.getMonitorTaskList();} else {That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);}});}}});},addMonitorTask() {let status = this.$refs.addMonitorTaskPage.validation();if(!status){return;}const url = '/lte/ems/sys/monitor/task/add';const monitorTaskPo = this.$refs.addMonitorTaskPage.getMonitorTask();console.log("******addMonitorTask-monitorTaskPo:", monitorTaskPo)if(monitorTaskPo == null) {return;}let That = this;this.axios.post(url, monitorTaskPo).then(response => {const result = response.data;if(result==true) {That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);That.getMonitorTaskList();That.$refs.addMonitorTaskDialog.clear();That.$refs.addMonitorTaskDialog.close();} else if (result==false){That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);}else {That.$parent.showToast('error', `${this.$t('Security.failureMessage')}`);}});},modiyMonitorTask() {let status = this.$refs.showMonitorTaskPage.validation();if(!status){return;}const url = '/lte/ems/sys/monitor/task/modify';const monitorTaskPo = this.$refs.showMonitorTaskPage.getMonitorTask();console.log("******modiyMonitorTask-monitorTaskPo:", monitorTaskPo)if(monitorTaskPo == null) {return;}let That = this;this.axios.post(url, monitorTaskPo).then(response => {const result = response.data;if(result) {That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);That.getMonitorTaskList();That.$refs.showMonitorTaskDialog.clear();That.$refs.showMonitorTaskDialog.close();} else {That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);}});},dialogHide() {this.$refs.addMonitorTaskDialog.clear();this.$refs.addMonitorTaskDialog.close();this.$refs.showMonitorTaskDialog.clear();this.$refs.showMonitorTaskDialog.clear();},refreshGrid() {this.keyword='';this.getMonitorTaskList();},getCheckedData(selectOnly) {// false: 不支持多选   true: 支持多选const selectedRecords = this.$refs.grid.getSelectedRecords();if (selectedRecords.length < 1) {// EventBus.$emit('toast', {type: 'warning', content: this.$t('Alarm.no_checked')});this.$parent.showToast('warning',`${this.$t('Alarm.no_checked')}`);return false;}if (selectedRecords.length > 1 && !selectOnly) {// EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});this.$parent.showToast('warning',`${this.$t('Common.tips.onlyOneSelect')}`);return false;}return selectedRecords;},},watch: {screenHeight(val) {this.screenHeight = val;}}
};
</script>

MonitorTaskLog.vue

<template><div class="h100vh-140"><div class="h-toolbarBg"><ejs-toolbar :items="toolbarItems"><!-- <ejs-toolbar><e-items><e-item prefixIcon='icon hero-icon hero-icon-refresh' tooltipText="$t('Alarm.refresh')" :click="refreshGrid"></e-item></e-items>  --></ejs-toolbar><!--<div class='h-inputBox'>--><!--  <ejs-dropdownlist :dataSource="productList" v-model="product"--><!--      :fields="fieldsType" name="productCheck"  @change="productChange" ></ejs-dropdownlist>--><!--</div>--><div class="h-inputBox">{{$t('Monitor.task.sampleStart')}}:<ejs-datetimepicker ref="dataStart" class="e-input e-disabled e-input-group" name="StartDate":format="dateFormat.format" v-model="monitorTask.sampleStart" :locale="locale"  @change="getMonitorTaskList" ></ejs-datetimepicker>{{$t('Monitor.task.sampleEnd')}}:<ejs-datetimepicker ref="dataEnd" class="e-input e-disabled e-input-group" name="EndDate":format="dateFormat.format" v-model="monitorTask.sampleEnd" :locale="locale"   @change="getMonitorTaskList"></ejs-datetimepicker></div></div><div class="h100-80 h-scroll"><ejs-grid :dataSource="monitorTaskLogData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' ><e-columns><!-- <e-column type="checkbox" width="50" textAlign="center"></e-column> --><e-column field="id" :visible="false"></e-column><!--<e-column field="product" :headerText="$t('Monitor.record.product')" width="120" textAlign="Center"></e-column>--><e-column field="systemInfo" :headerText="$t('Monitor.record.systemInfo')" width="240" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><!-- <e-column field="taskId" :headerText="$t('Monitor.record.taskId')" width="120" textAlign="Center"></e-column> --><e-column field="recoreTime" :headerText="$t('Monitor.record.recoreTime')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column><e-column field="cpu" :headerText="$t('Monitor.record.cpu')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="cpuThreshold" :visible="false" :headerText="$t('Monitor.record.cpuThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="memory" :headerText="$t('Monitor.record.memory')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="memoryThreshold" :visible="false" :headerText="$t('Monitor.record.memoryThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="space" :headerText="$t('Monitor.record.diskSpace')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="spaceThreshold" :visible="false" :headerText="$t('Monitor.record.diskSpaceThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="networkRxRate" :headerText="$t('Monitor.record.networkRxRate')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="networkTxRate" :headerText="$t('Monitor.record.networkTxRate')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="iopsKbRead" :headerText="$t('Monitor.record.IOPSKbRead')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="iopsKbWrite" :headerText="$t('Monitor.record.IOPSKbWrite')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="queueOperands" :headerText="$t('Monitor.record.queueOperands')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="databaseDiskSpaceIsUsed" :headerText="$t('Monitor.record.databaseDiskSpaceIsUsed')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column><e-column field="snmpAlarmDataSize" :headerText="$t('Monitor.record.snmpAlarmDataSize')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column></e-columns></ejs-grid><ejs-pagerref="pager":pageSize="pageSettings.pageSize":pageCount="page.pageCount":currentPage="page.pageNo":totalRecordsCount="page.totalRecordsCount"@click="getMonitorTaskList"></ejs-pager></div></div>
</template>
<script>
import {ExcelExport} from '@syncfusion/ej2-vue-grids';export default {name: 'monitorSystemLog',provide: {grid: [ExcelExport]},components: {},data() {return {isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Refresh,monitorTaskLogData: [],left: { show: false, name: '' },middle: { show: false, name: '' },right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.record.titleName')}` },toolbarItems: [{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },],locale: localStorage.getItem('locale'),product: '',productList: [],pageSettings: { pageSize: 15 },page: {pageCount: 4,totalRecordsCount: 0,pageNo: 1,},monitorTask: {taskName: '',product: 'PLATFORM',sampleStart: '',sampleEnd: '',},dateFormat: {type: 'date', format: 'yyyy-MM-dd HH:mm:ss'},fieldsType: {text: "text",value: "value"},addStatus: true,screenHeight: document.body.clientHeight - 240};},mounted() {this.getMonitorTaskList();this.getProductList();let That = this;},methods: {typeFormat(grids, data) {if(data.exeCycle == 'run'){return `${this.$t('Monitor.record.run')}`;}else if(data.exeCycle == 'start'){return `${this.$t('Monitor.record.start')}`;}},getMonitorTaskList() {const url = '/lte/ems/sys/monitor/log/queryMonitorTaskLog';this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;const params = { params: {product: this.product,pageNo: this.page.pageNo,pageSize: this.pageSettings.pageSize,startTime:this.monitorTask.sampleStart=='' ? '' : Date.parse(this.monitorTask.sampleStart),endTime:this.monitorTask.sampleEnd=='' ? '' : Date.parse(this.monitorTask.sampleEnd)} };const That = this;this.axios.get(url, params).then(response => {const result = response.data.result;result.forEach((v) => {if (!!v.recoreTime) {let date = new Date();date.setTime(v.recoreTime);v.recoreTime = date;}});That.monitorTaskLogData = result;That.page.totalRecordsCount = response.data.totalCount;});},productChange(msg){this.product = msg.value;this.getMonitorTaskList();},getProductList() {this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {let resultVal = response.data.resultVal;resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));this.productList.push({ text: "All", value: "" });for (let i = 0; i < resultVal.length; i++) {this.productList.push({text: resultVal[i],value: resultVal[i],});}});},filterMonitorTask() {this.getMonitorTaskList();},refreshGrid() {this.product='';this.getMonitorTaskList();},},watch: {screenHeight(val) {this.screenHeight = val;}}
};
</script>

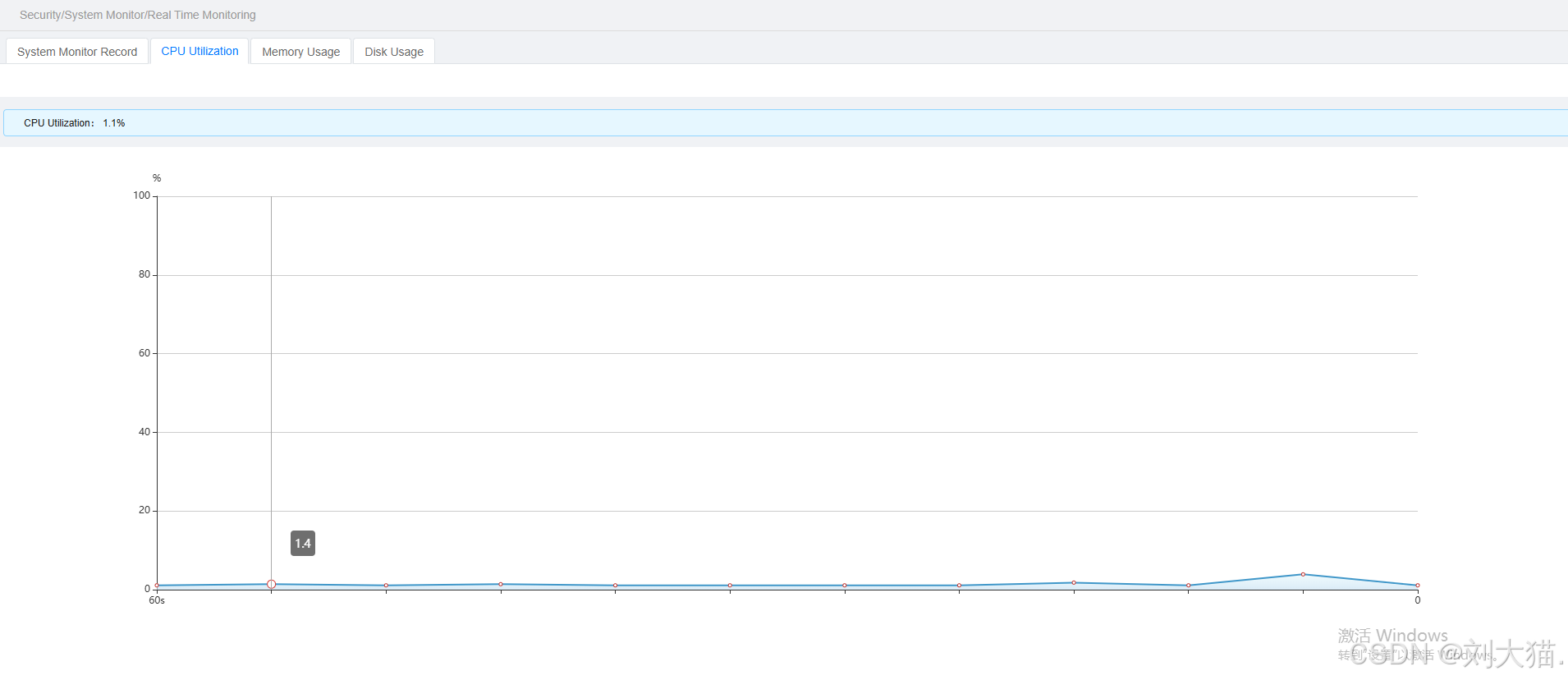

RealtimeCpuMonitor.vue

<template><div class='h100vh-150 h-normalBg'><div class='h-ainfoBg'><div class='h-ainfo'><span class='icon hero-icon hero-icon-detailcode'></span><span>{{$t('Monitor.realTimeMonitoring.CPUUtilization')}}： {{ CPUUtilization }}%</span></div></div><div class='h-normalContainter'><div class='row h-nomargin h-full-container width-100vw h100-80'><div id='cpuMonitor' class='width-100vw h100' style="height:599px"></div></div></div></div>
</template>
<script>
import echarts from 'echarts';export default{name: "realtimeCpuMonitor",data() {return {data: [],charts: "",app: {},myChart: null,xData: [],CPUUtilization: 0};},methods: {initData() {this.myChart = echarts.init(document.getElementById('cpuMonitor'));for (var i=0;i<12;i++){if(i==11){this.xData.push('0');}else if (i==0){this.xData.push('60s')}else{this.xData.push('');}this.data.push('-');}let option = this.getChartOption();if (option && typeof option === 'object') {this.myChart.setOption(option);}},random(min,max){return Math.floor(Math.random()*(max-min))+min;},randomData() {return this.random(20,60);},getMonitorData(CPUUtilization) {this.CPUUtilization=CPUUtilization;if(this.data.length>=12){this.data.shift();}this.data.push(CPUUtilization);this.myChart.clear();this.myChart.setOption(this.getChartOption(),true);this.myChart.resize();},getChartOption() {const option = {title: {text: ''},tooltip: {trigger: 'axis',formatter: function (params) {return params[0].value;},axisPointer: {animation: false}},xAxis: {type: 'category',data: this.xData,boundaryGap: false},yAxis: {name: "%",type: 'value',min: 0,max: 100,axisLabel: {formatter: '{value}'}},series: [{type: 'line',areaStyle: {color: {type: 'linear',x: 0,y: 0,x2: 0,y2: 1,colorStops: [{offset: 0,color: 'rgb(232,248,252)'},{offset: 1,color: 'rgb(203,227,243)'}],global: false}},data: this.data,lineStyle: {color: '#4097c9'}}]};return option;}},mounted() {this.initData();}
}
</script>

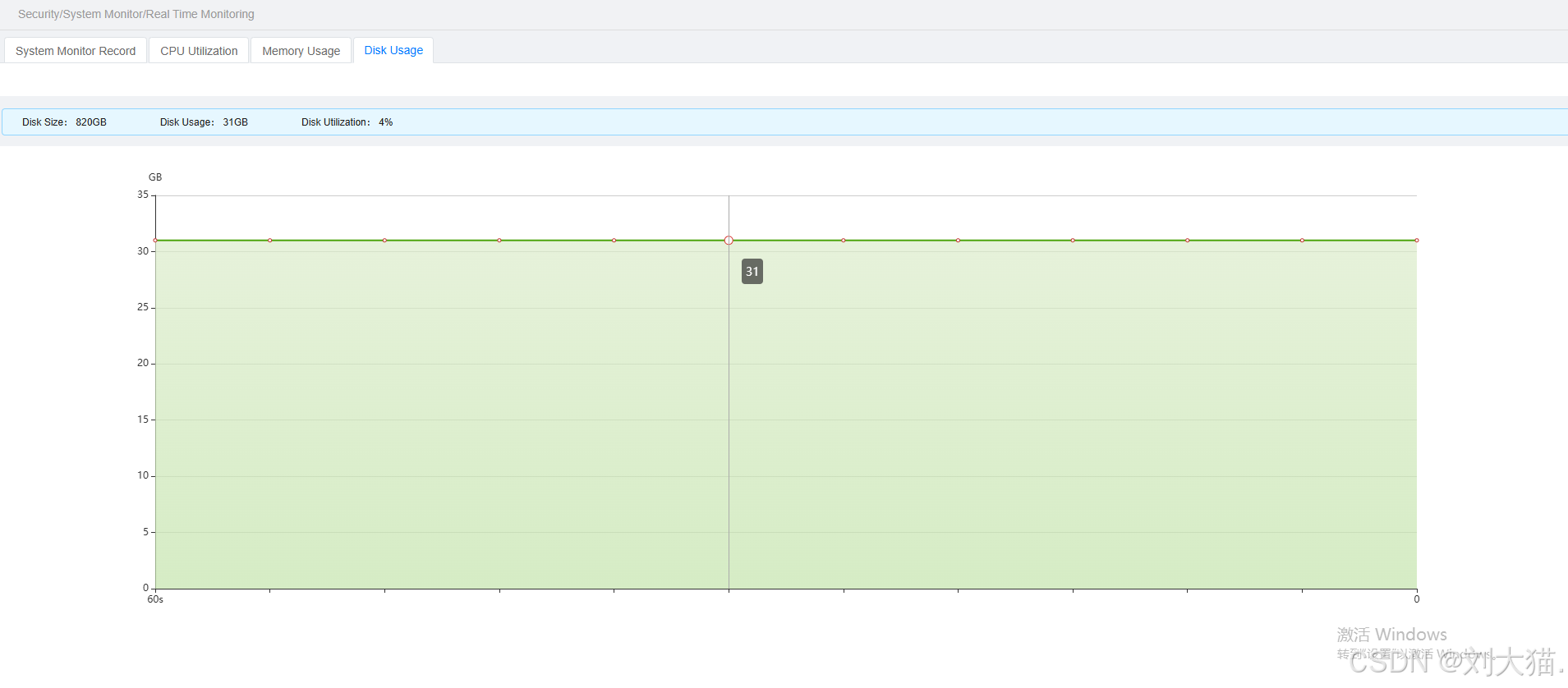

RealtimeDiskMonitor.vue

<template><div class='h100vh-150 h-normalBg'><div class='h-ainfoBg'><div class='h-ainfo'><span class='icon hero-icon hero-icon-detailcode'></span><span>{{$t('Monitor.realTimeMonitoring.diskSize')}}： {{ diskSize }}GB</span><span>{{$t('Monitor.realTimeMonitoring.diskUsage')}}： {{ diskUsage }}GB</span><span>{{$t('Monitor.realTimeMonitoring.diskUtilization')}}： {{ diskUtilization }}%</span></div></div><div class='h-normalContainter'><div class='row h-nomargin h-full-container width-100vw h100-80'><div id='diskMonitor' class='width-100vw h100' style="height:599px"></div></div></div></div>
</template>
<script>
import echarts from 'echarts';export default{name: "realtimeMemoryMonitor",data() {return {data: [],charts: "",app: {},myChart: null,xData: [],diskSize: 0,diskUsage: 0,diskUtilization: 0,};},methods: {initData() {this.myChart = echarts.init(document.getElementById('diskMonitor'));for (var i=0;i<12;i++){if(i==11){this.xData.push('0');}else if (i==0){this.xData.push('60s')}else{this.xData.push('');}this.data.push('-');}let option = this.getChartOption();if (option && typeof option === 'object') {this.myChart.setOption(option);}this.getMonitorData();},random(min,max){return Math.floor(Math.random()*(max-min))+min;},randomData() {return this.random(5600,7000);},getMonitorData(diskSize, diskUsage, diskUtilization) {this.diskSize = diskSize;this.diskUsage = diskUsage;this.diskUtilization = diskUtilization;if(this.data.length >= 12){this.data.shift();}this.data.push(diskUsage);this.myChart.clear();this.myChart.setOption(this.getChartOption(),true);this.myChart.resize();},getChartOption() {const option = {title: {text: ''},tooltip: {trigger: 'axis',formatter: function (params) {return params[0].value;},axisPointer: {animation: false}},xAxis: {type: 'category',data: this.xData,boundaryGap: false},yAxis: {name: "GB",type: 'value',axisLabel: {formatter: '{value}'}},series: [{type: 'line',areaStyle: {color: {type: 'linear',x: 0,y: 0,x2: 0,y2: 1,colorStops: [{offset: 0,color: 'rgb(220,236,203)'},{offset: 1,color: 'rgb(196,228,172)'}],global: false}},data: this.data,lineStyle: {color: '#4da40d'}}]};return option;}},mounted() {this.initData();},beforeDestroy() {try {clearInterval(this.clock);} catch (e) {console.log(e);}}
}
</script>

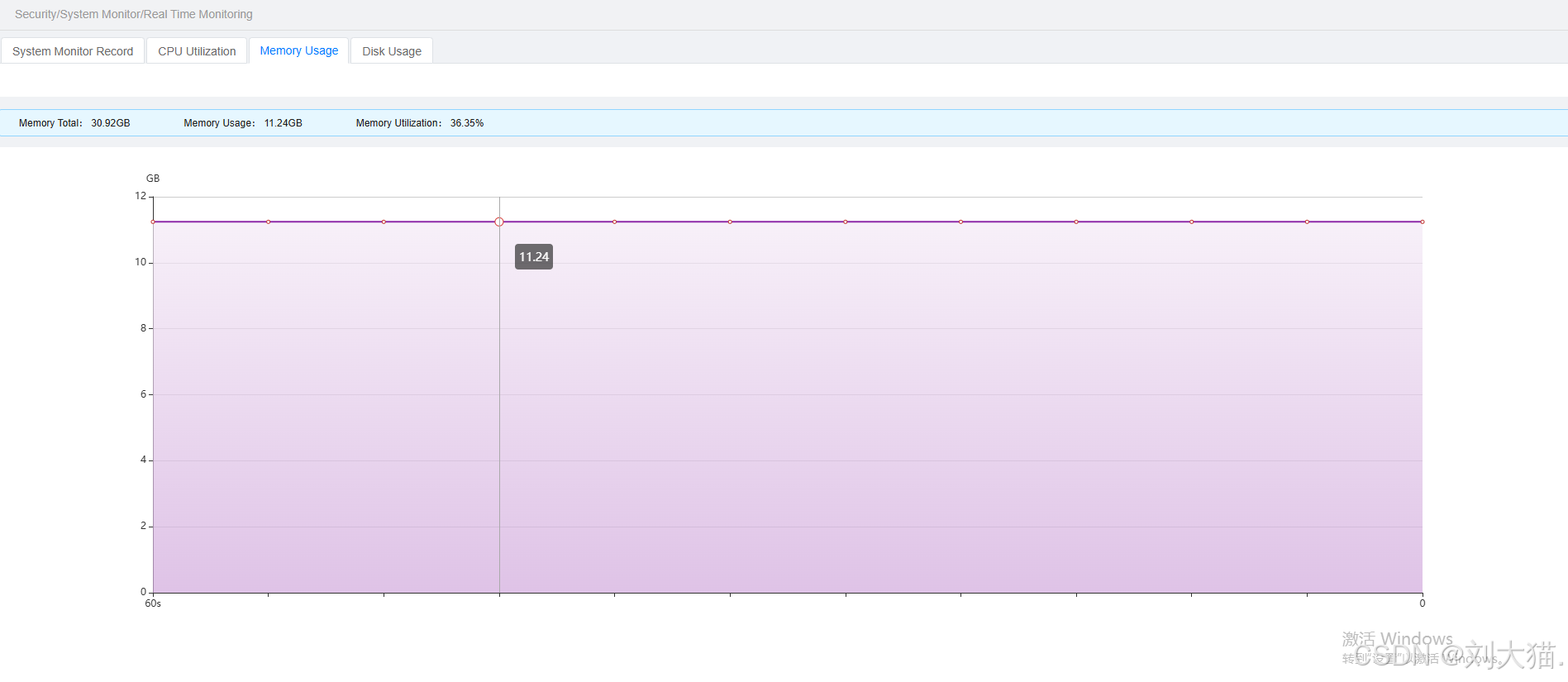

RealtimeMemoryMonitor.vue

<template><div class='h100vh-150 h-normalBg'><div class='h-ainfoBg'><div class='h-ainfo'><span class='icon hero-icon hero-icon-detailcode'></span><span>{{$t('Monitor.realTimeMonitoring.memoryTotal')}}： {{ memoryTotal }}GB</span><span>{{$t('Monitor.realTimeMonitoring.memoryUsage')}}： {{ memoryUsage }}GB</span><span>{{$t('Monitor.realTimeMonitoring.memoryUtilization')}}： {{ memoryUsageRatio }}%</span></div></div><div class='h-normalContainter'><div class='row h-nomargin h-full-container width-100vw h100-80'><div id='memoryMonitor' class='width-100vw h100' style="height:599px"></div></div></div></div>
</template>
<script>
import echarts from 'echarts';export default{name: "realtimeMemoryMonitor",data() {return {data: [],charts: "",app: {},myChart: null,xData: [],memoryUsage: 0,memoryTotal: 0,memoryUsageRatio: 0,};},methods: {initData() {this.myChart = echarts.init(document.getElementById('memoryMonitor'));for (var i=0;i<12;i++){if(i==11){this.xData.push('0');}else if (i==0){this.xData.push('60s')}else{this.xData.push('');}this.data.push('-');}let option = this.getChartOption();if (option && typeof option === 'object') {this.myChart.setOption(option);}},random(min,max){return Math.floor(Math.random()*(max-min))+min;},randomData() {return this.random(5600,7000);},getMonitorData(memoryTotal, memoryUsage, memoryUsageRatio) {this.memoryTotal = memoryTotal;this.memoryUsage = memoryUsage;this.memoryUsageRatio = memoryUsageRatio;if(this.data.length>=12){this.data.shift();}this.data.push(memoryUsage);this.myChart.clear();this.myChart.setOption(this.getChartOption(),true);this.myChart.resize();},getChartOption() {const option = {title: {text: ''},tooltip: {trigger: 'axis',formatter: function (params) {return params[0].value;},axisPointer: {animation: false}},xAxis: {type: 'category',data: this.xData,boundaryGap: false},yAxis: {name: "GB",type: 'value',axisLabel: {formatter: '{value}'}},series: [{type: 'line',areaStyle: {color: {type: 'linear',x: 0,y: 0,x2: 0,y2: 1,colorStops: [{offset: 0,color: 'rgb(244,234,246)'},{offset: 1,color: 'rgb(209,169,220)'}],global: false}},data: this.data,lineStyle: {color: '#8d29a8'}}]};return option;}},mounted() {this.initData();}
}
</script>

RealtimeMonitor.vue

<template><BasicLayout :left="left" :middle="middle" :right="right"><template v-slot:right_view><div class="h-outTabs"><ejs-tab ref="tabObj" id="tab_orientation" heightAdjustMode="Auto" :selected='selected' :selectedItem="0"><e-tabitems><e-tabitem :header="headerText1" content="#idv1"></e-tabitem><e-tabitem :header="headerText2" content="#idv2"></e-tabitem><e-tabitem :header="headerText3" content="#idv3"></e-tabitem><e-tabitem :header="headerText4" content="#idv4"></e-tabitem></e-tabitems></ejs-tab></div><div id="idv1" style="display: none"><MonitorTaskLog></MonitorTaskLog></div><div id="idv2" style="display: none"><RealtimeCpuMonitor ref='realtimeCpuMonitor'></RealtimeCpuMonitor></div><div id="idv3" style="display: none"><RealtimeMemoryMonitor ref='realtimeMemoryMonitor'></RealtimeMemoryMonitor></div><div id="idv4" style="display: none"><RealtimeDiskMonitor ref='realtimeDiskMonitor'></RealtimeDiskMonitor></div></template></BasicLayout>
</template>
<script>
import BasicLayout from '../../layouts/BasicLayout';
import RealtimeCpuMonitor from './RealtimeCpuMonitor';
import RealtimeMemoryMonitor from './RealtimeMemoryMonitor';
import RealtimeDiskMonitor from './RealtimeDiskMonitor';
import socketInstance from '../../plugins/stompSock';
import MonitorTaskLog from '../../views/monitor/MonitorTaskLog';export default{name: "realtimeMonitor",components: {MonitorTaskLog,BasicLayout,RealtimeCpuMonitor,RealtimeMemoryMonitor,RealtimeDiskMonitor},data() {return {left: { show: false, name: '' },middle: { show: false, name: '' },right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.realTimeMonitoring.crumb')}` },headerText1: { text: `${this.$t('Monitor.record.titleName')}` },headerText2: { text: `${this.$t('Monitor.realTimeMonitoring.CPUUtilization')}` },headerText3: { text: `${this.$t('Monitor.realTimeMonitoring.memoryUsage')}` },headerText4: { text: `${this.$t('Monitor.realTimeMonitoring.diskUsage')}`},websocketSetting: [{ topic: '/user/#/realTimeMonitoring', clientId: 'monitoring', callback: this.websocketCallback }],};},methods: {selected(args){const index = args.selectedIndex;if (index === 0) {} else {}},websocketInit() {socketInstance.init(this.websocketSetting);},websocketCallback(msg) {const data = JSON.parse(msg.body);const CPUUtilization = data.CPUUsage;this.$refs.realtimeCpuMonitor.getMonitorData(CPUUtilization);const memoryTotal = data.memoryTotal;const memoryUsage = data.memoryUsage;const memoryUsageRatio = data.memoryUsageRatio;this.$refs.realtimeMemoryMonitor.getMonitorData(memoryTotal, memoryUsage, memoryUsageRatio);const diskTotal = data.diskTotal;const diskUsage = data.diskUsage;const diskUtilization = data.diskUsageRatio;this.$refs.realtimeDiskMonitor.getMonitorData(diskTotal, diskUsage, diskUtilization);}},mounted() {this.websocketInit();},beforeDestroy() {for (let i = 0; i < this.websocketSetting.length; i++) {socketInstance.stopReceiveTopicMsg(this.websocketSetting[i].clientId, this.websocketSetting[i].topic);}}
}
</script>

后端

en_US.js

"record": {"systemInfo": "System Info","product": "Product","memory": "Memory Usage Threshold（%）","titleName": "System Monitor Record","recoreTime": "Record Time","memoryThreshold": "Memory Usage Threshold（%）","cpuThreshold": "Cpu Usage Threshold（%）","diskSpaceThreshold": "Disk Space Usage Threshold（%）","diskSpace": "Disk Space Usage Threshold（%）","cpu": "Cpu Usage Threshold（%）","taskId": "Task ID","networkRxRate": "Network Rx Rate/s","networkTxRate": "Network Tx Rate/s","IOPSKbRead": "IOPS kB_read/s","IOPSKbWrite": "IOPS kB_wrtn/s","queueOperands": "Total number of stored queue operations/s","databaseDiskSpaceIsUsed": "Database disk space used in the file system","snmpAlarmDataSize": "SBI alarm number/s",},

zh_CN.js

"record": {"systemInfo": "系统信息","product": "产品","memory": "内存使用率阈值（%）","titleName": "系统监控记录","recoreTime": "记录时间","memoryThreshold": "内存使用率阈值（%）","cpuThreshold": "Cpu使用率阈值（%）","diskSpaceThreshold": "磁盘空间使用率阈值（%）","diskSpace": "磁盘空间使用率阈值（%）","cpu": "Cpu使用率阈值（%）","taskId": "任务id","networkRxRate": "网络接收数据包速率/s","networkTxRate": "网络发送数据包速率/s","IOPSKbRead": "IOPS读取数据量/s","IOPSKbWrite": "IOPS写入数据量/s","queueOperands": "存储队列操作总数/s","databaseDiskSpaceIsUsed": "文件系统中数据库磁盘空间占用大小","snmpAlarmDataSize": "南向告警数量/s",},

MonitorTaskController

package com.hero.lte.ems.monitor.controller;import com.alibaba.fastjson.JSONObject;
import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.entity.po.MonitorTaskPo;
import com.hero.lte.ems.monitor.entity.po.MonitorThresholdPo;
import com.hero.lte.ems.monitor.eunm.MonitorTaskStateEnum;
import com.hero.lte.ems.monitor.service.IMonitorTaskService;
import com.hero.lte.ems.monitor.take.MonitorTaskExe;
import com.hero.lte.ems.monitor.util.UUIDGennerator;
import com.hero.lte.ems.security.entity.Account;
import com.hero.lte.ems.security.entity.Log;
import com.hero.lte.ems.security.service.ILogService;
import io.swagger.annotations.Api;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.subject.Subject;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;import java.io.BufferedReader;
import java.io.File;
import java.io.FileReader;
import java.io.IOException;
import java.nio.file.Files;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;/*** @author l22898*/
@Api(value = "MonitorTaskController",tags={"系统监控任务"})
@RestController
@RequestMapping("/lte/ems/sys/monitor/task/")
public class MonitorTaskController {private static final Logger logger = LoggerFactory.getLogger(MonitorTaskController.class);@Autowiredprivate IMonitorTaskService monitorTaskService;@Autowiredprivate ILogService logService;private String monitorFilePath = "/home/ems/ems_eam/conf/monitorFiles.properties";private String checkoutFilePath = "/home/ems/ems_eam/conf/checkout.properties";@ResponseBody@RequestMapping(value = "query", method = RequestMethod.GET)public Page<MonitorTask> getPmGnbReportTaskList(MonitorTask monitorTask, Page<MonitorTask> page){Long currentTimeMillis = System.currentTimeMillis();boolean expired = false;Page<MonitorTask> pageReturn = new Page<>();try{page.setParam(monitorTask);pageReturn = monitorTaskService.getMonitorTaskList(page);for (MonitorTask task : pageReturn.getResult()) {if (task.getExeState() != 3 && currentTimeMillis > task.getSampleEnd()) {expired = true;task.setExeState(3);monitorTaskService.updateMonitorTask(task);}}if (expired) {pageReturn = monitorTaskService.getMonitorTaskList(page);}}catch (Exception e){logger.error("系统监控任务查询失败" ,e);}return pageReturn;}@ResponseBody@RequestMapping(value = "queryId", method = RequestMethod.GET)public MonitorTaskPo getPmGnbReportTask(String id){MonitorTaskPo monitorTaskPo = new MonitorTaskPo();try{//查询任务MonitorTask monitorTask = monitorTaskService.getMonitorTask(id);JSONObject jsonObject = JSONObject.parseObject(monitorTask.getThreshold());MonitorThresholdPo monitorThresholdPo = JSONObject.toJavaObject(jsonObject, MonitorThresholdPo.class);monitorTaskPo.setMonitorTask(monitorTask);monitorTaskPo.setMonitorThresholdPo(monitorThresholdPo);}catch (Exception e){logger.error("系统监控任务查询失败" ,e);}return monitorTaskPo;}/*** 新增* @param monitorTaskPo* @returnwq*/@ResponseBody@RequestMapping(value = "add", method = RequestMethod.POST)public String insertMonitorTask(@RequestBody MonitorTaskPo monitorTaskPo) {String result = "true";try {if(monitorTaskPo == null){return "false";}MonitorTask monitorTask = monitorTaskPo.getMonitorTask();String taskName = monitorTask.getTaskName();//根据任务名称查询是否存在List<MonitorTask> monitorTasks = monitorTaskService.queryDataByTaskName(taskName);if(monitorTasks.size() > 0){logger.error("任务名称重复");return "Duplicate task name.";}monitorTask.setId(UUIDGennerator.generator());monitorTask.setExeState(MonitorTaskStateEnum.IN_SUSPEND.getCode());monitorTask.setThreshold(JSONObject.toJSONString(monitorTaskPo.getMonitorThresholdPo()));monitorTaskService.insertMonitorTask(monitorTask);MonitorTaskExe.setMonitorTaskMap(monitorTask);} catch (Exception e) {logger.error("系统监控任务新增失败" ,e);result = "false";}finally {Subject subject = SecurityUtils.getSubject();Account account;if (subject != null) {account = (Account) subject.getPrincipal();String username = account.getUsername();String userId = account.getUserId();String ip = account.getIp();int status;if(result.equals("true")){status = 1;}else {status = 2;}this.addOperateLog(userId,username,status,"res.create_monitor_task",ip,"Create a system monitoring task.");}}return result;}@ResponseBody@RequestMapping(value = "modify", method = RequestMethod.POST)public boolean updateMonitorTask(@RequestBody MonitorTaskPo monitorTaskPo) {boolean result = true;try {if(monitorTaskPo == null){return false;}MonitorTask monitorTask = monitorTaskPo.getMonitorTask();MonitorTask modifyResult = monitorTaskService.getMonitorTask(monitorTask.getId());monitorTask.setExeState(modifyResult.getExeState());monitorTask.setThreshold(JSONObject.toJSONString(monitorTaskPo.getMonitorThresholdPo()));monitorTaskService.updateMonitorTask(monitorTask);MonitorTaskExe.setMonitorTaskMap(monitorTask);} catch (Exception e) {logger.error("系统监控任务修改失败" ,e);result = false;}finally {Subject subject = SecurityUtils.getSubject();Account account;if (subject != null) {account = (Account) subject.getPrincipal();String username = account.getUsername();String userId = account.getUserId();String ip = account.getIp();int status;if(result){status = 1;}else {status = 2;}this.addOperateLog(userId,username,status,"res.modify_monitor_task",ip,"Modify a system monitoring task.");}}return result;}/*** 暂停* @param idList* @return*/@ResponseBody@RequestMapping(value = "deactive", method = RequestMethod.POST)public boolean deactiveMonitorTask(@RequestBody List<String> idList) {boolean result = true;try {if(idList != null && idList.size() > 0){monitorTaskService.deactiveMonitorTask(idList);}MonitorTaskExe.deactiveMonitorTaskMap(idList);} catch (Exception e) {logger.error("系统监控任务暂停失败" ,e);result = false;}return result;}/*** 启动* @param idList* @return*/@ResponseBody@RequestMapping(value = "active", method = RequestMethod.POST)public boolean activeMonitorTask(@RequestBody List<String> idList) {boolean result = true;try {if(idList != null && idList.size() > 0){monitorTaskService.activeMonitorTask(idList);}MonitorTaskExe.activeMonitorTaskMap(idList);} catch (Exception e) {logger.error("系统监控任务启动失败" ,e);result = false;}return result;}/*** 删除* @param idList* @id*/@ResponseBody@RequestMapping(value = "delete", method = RequestMethod.POST)public boolean delete(@RequestBody List<String> idList) {boolean result = true;try {if(idList != null && idList.size() > 0){monitorTaskService.deleteMonitorTask(idList);}MonitorTaskExe.deleteMonitorTaskMap(idList);} catch (Exception e) {logger.error("系统监控任务删除失败" ,e);result = false;}finally {Subject subject = SecurityUtils.getSubject();Account account;if (subject != null) {account = (Account) subject.getPrincipal();String username = account.getUsername();String userId = account.getUserId();String ip = account.getIp();int status;if(result){status = 1;}else {status = 2;}this.addOperateLog(userId,username,status,"res.delete_monitor_task",ip,"Delete a system monitoring task.");}}return result;}@Scheduled(cron = "0 1 0 * * ?")public void modifyExpiredTaskStatus() {logger.info("-modifyExpiredTaskStatus-begin");Long currentTimeMillis = System.currentTimeMillis();List<MonitorTask> list = monitorTaskService.getMonitorTaskAll();for (MonitorTask task : list) {if (task.getExeState() != 3 && currentTimeMillis > task.getSampleEnd()) {task.setExeState(3);monitorTaskService.updateMonitorTask(task);}}}public void addOperateLog(String userId,String userName,int updateStatus,String featureId,String ip,String ExecData){Log log = new Log();log.setAccountId(userId);log.setAccountName(userName);log.setModuleId("res.security#res.system_monitor#res.monitor_task");log.setFeatureId(featureId);log.setExecTime(System.currentTimeMillis());log.setExecType(2);log.setResult(updateStatus);//  Create a system monitoring task//  Modify a system monitoring task//  Delete a system monitoring tasklog.setExecData(ExecData);log.setIp(ip);logService.addOperateLog(log);}@Scheduled(cron = "0 0 0/1 * * ?")public void monitorWhetherFilesAreTamperedWith() {logger.info("Monitor whether files are tampered begin!");// 读取 checkout.properties 文件Map<String, String> expectedMD5Map = readExpectedMD5(checkoutFilePath);if (expectedMD5Map == null) return;// 读取 monitorFiles.properties 文件并进行 MD5 校验try (BufferedReader reader = new BufferedReader(new FileReader(monitorFilePath))) {String filePath;while ((filePath = reader.readLine()) != null) {filePath = filePath.trim(); // 去掉前后空格if (expectedMD5Map.containsKey(filePath)) {String expectedMD5 = expectedMD5Map.get(filePath);String calculatedMD5 = calculateMD5(new File(filePath));if (calculatedMD5 == null) {logger.error("Monitor whether files are tampered, Error calculating MD5 for file:{}", filePath);continue;}// 比较 MD5 值if (!calculatedMD5.equalsIgnoreCase(expectedMD5)) {logger.error("Monitor whether files are tampered, Error: MD5 mismatch for:{}, Expected:{}, but got:{}, The conclusion document has been tampered with!", filePath, expectedMD5, calculatedMD5);}} else {logger.warn("Monitor whether files are tampered, Warning: No expected MD5 found for:{}", filePath);}}} catch (IOException e) {logger.error("Monitor whether files are tampered, Exception:{}", e.getMessage());}}private static Map<String, String> readExpectedMD5(String checkoutFilePath) {Map<String, String> md5Map = new HashMap<>();try (BufferedReader reader = new BufferedReader(new FileReader(checkoutFilePath))) {String line;while ((line = reader.readLine()) != null) {String[] parts = line.split("=");if (parts.length == 2) {String filePath = parts[0].trim();String md5Value = parts[1].trim();md5Map.put(filePath, md5Value);} else {logger.error("Skipping invalid line in checkout.properties:{}", line);}}} catch (IOException e) {logger.error("readExpectedMD5-Exception:{}", e.getMessage());}return md5Map;}private static String calculateMD5(File file) {try {MessageDigest md = MessageDigest.getInstance("MD5");byte[] bytes = Files.readAllBytes(file.toPath());byte[] digest = md.digest(bytes);StringBuilder sb = new StringBuilder();for (byte b : digest) {sb.append(String.format("%02x", b));}return sb.toString();} catch (IOException | NoSuchAlgorithmException e) {logger.error("calculateMD5-Exception:{}", e.getMessage());return null;}}
}

IMonitorTaskService

package com.hero.lte.ems.monitor.service;import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.framework.exception.LteException;
import com.hero.lte.ems.monitor.entity.MonitorTask;import java.util.List;
import java.util.Map;public interface IMonitorTaskService {Page<MonitorTask> getMonitorTaskList(Page<MonitorTask> pager);List<MonitorTask> getMonitorTaskAll();MonitorTask getMonitorTask(String id) throws LteException ;int insertMonitorTask(MonitorTask monitorTask);int updateMonitorTask(Map<String, Object> map);int deleteMonitorTask(List<String> idList);int deactiveMonitorTask(List<String> idList);int activeMonitorTask(List<String> idList);int updateMonitorTask(MonitorTask monitorTask);List<MonitorTask> queryDataByTaskName(String taskName);
}

MonitorTaskServiceImpl

package com.hero.lte.ems.monitor.service.impl;import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.framework.exception.LteException;
import com.hero.lte.ems.monitor.dao.MonitorTaskMapper;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.service.IMonitorTaskService;
import com.hero.lte.ems.security.config.aop.LogAnnotation;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;import javax.annotation.Resource;
import java.util.List;
import java.util.Map;/*** @author l22898*/
@Service
public class MonitorTaskServiceImpl implements IMonitorTaskService {private static final Logger LOGGER = LoggerFactory.getLogger(MonitorTaskServiceImpl.class);@Resourceprivate MonitorTaskMapper monitorTaskMapper;@Overridepublic Page<MonitorTask> getMonitorTaskList(Page<MonitorTask> pager){List<MonitorTask> monitorTaskList = monitorTaskMapper.findMonitorTaskPage(pager, pager.getParam());return pager;}@Overridepublic List<MonitorTask> getMonitorTaskAll(){List<MonitorTask> monitorTaskList = monitorTaskMapper.findMonitorTaskAll();return monitorTaskList;}@Overridepublic MonitorTask getMonitorTask(String id) throws LteException {return monitorTaskMapper.findById(id);}@Overridepublic int insertMonitorTask(MonitorTask monitorTask){return monitorTaskMapper.insertMonitorTask(monitorTask);}@Overridepublic int updateMonitorTask(MonitorTask monitorTask){return monitorTaskMapper.modMonitorTask(monitorTask);}@Overridepublic List<MonitorTask> queryDataByTaskName(String taskName) {return monitorTaskMapper.queryDataByTaskName(taskName);}@Overridepublic int updateMonitorTask(Map<String, Object> map){return monitorTaskMapper.updateMonitorTask(map);}@Overridepublic int deleteMonitorTask(List<String> idList){return monitorTaskMapper.deleteMonitorTask(idList);}@Override@LogAnnotation(module = "res.security#res.system_monitor", feature = "res.alarm_mod", type = 2)public int deactiveMonitorTask(List<String> idList) {return monitorTaskMapper.deactiveMonitorTask(idList);}@Override@LogAnnotation(module = "res.security#res.system_monitor", feature = "res.alarm_mod", type = 2)public int activeMonitorTask(List<String> idList) {return monitorTaskMapper.activeMonitorTask(idList);}
}

MonitorTaskMapper

package com.hero.lte.ems.monitor.dao;import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.entity.MonitorTaskLog;
import org.apache.ibatis.annotations.Param;import java.util.List;
import java.util.Map;public interface MonitorTaskMapper {MonitorTask findById(String id);List<MonitorTask> findMonitorTaskPage(@Param("page") Page pager, @Param("monitorTask") MonitorTask monitorTask);List<MonitorTask> findMonitorTaskAll();int insertMonitorTask(MonitorTask monitorTask);int updateMonitorTask(Map<String, Object> map);int deleteMonitorTask(@Param("idList")List<String> idList);int deactiveMonitorTask(@Param("idList")List<String> idList);int activeMonitorTask(@Param("idList")List<String> idList);int modMonitorTask(MonitorTask monitorTask);List<MonitorTask> queryDataByTaskName(@Param("taskName") String taskName);
}
