采用小程序远程控制LED灯亮灭

关键技术栈：SpringBoot + uniapp + MQTT + micropython + docker

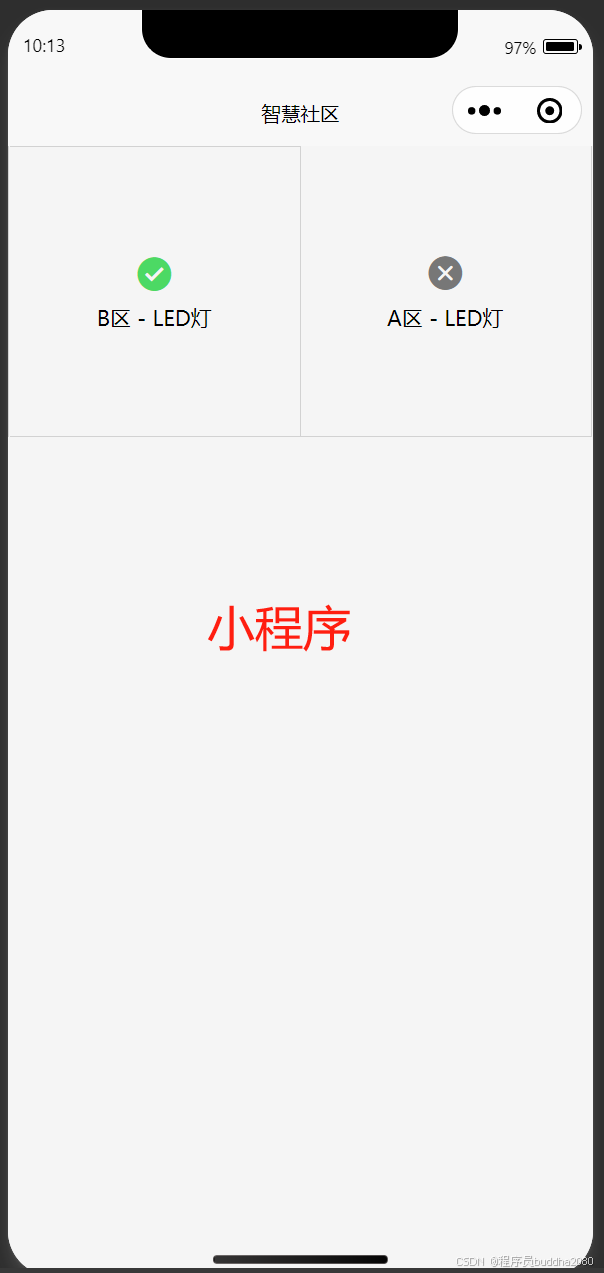

最终实现效果：小程序控制ESP32的LED设备亮灭，呈现效果如下：


整体流程：
①、小程序端发送控制信息给SpringBoot后端；
②、后端把控制信息存储更新到数据库同时把控制信息发布到MQTT；
③、订阅了MQTT服务的ESP32，根据收到的订阅信息更新对应端口状态（这里就是控制LED灯亮灭）

实现步骤：
1、Docker方式安装MQTT服务端（Mosquitto），MQTT作为发布订阅消息队列。

## 服务器或虚拟机安装好了docker软件# 拉取Mosquitto镜像
sudo docker pull eclipse-mosquitto:latest# 创建本地存储目录
mkdir -p ~/mosquitto/config ~/mosquitto/data ~/mosquitto/log# 创建配置文件
cat << EOF > ~/mosquitto/config/mosquitto.conf
persistence true
persistence_location /mosquitto/data
log_dest file /mosquitto/log/mosquitto.log# 允许匿名连接（生产环境应配置密码）
allow_anonymous true# 监听端口
listener 1883 0.0.0.0
EOF# 运行容器
sudo docker run -d \--name mosquitto \-p 1883:1883 \-p 9001:9001 \-v ~/mosquitto/config:/mosquitto/config \-v ~/mosquitto/data:/mosquitto/data \-v ~/mosquitto/log:/mosquitto/log \eclipse-mosquitto

2、小程序呈现控制开关并请求后端服务。

// /utils/config.js
const env = process.env.NODE_ENVconst config = {development: {baseUrl: 'http://localhost:8080/api'},production: {baseUrl: 'http://localhost:8080/api'}
}export default config[env] || config.production

// /utils/http.js
import config from './config'
const BASE_URL = config.baseUrlconst http = (options) => {// 显示加载中if (options.loading !== false) {uni.showLoading({title: '加载中...',mask: true})}// 返回 Promise 对象return new Promise((resolve, reject) => {// 处理请求头let header = {'Content-Type': 'application/json',...options.header}// 携带 tokenconst token = uni.getStorageSync('token')if (token) {header.Authorization = `Bearer ${token}`}uni.request({url: BASE_URL + options.url,method: options.method || 'GET',data: options.data || {},header: header,timeout: 10000, // 10秒超时success: (res) => {// 响应成功处理if (res.statusCode === 200) {// 这里根据你的后端数据结构调整if (res.data.code === 200) {resolve(res.data.data)} else {// 业务错误处理_showError(res.data.code, res.data.message)reject(res.data)}} else {// HTTP 状态码错误处理_showError(res.statusCode, res.errMsg)reject(res)}},fail: (err) => {// 网络错误处理_showError(500, '网络连接失败，请检查网络')reject(err)},complete: () => {// 关闭加载uni.hideLoading()}})})
}// 错误处理函数
function _showError(code, message) {const errorMap = {400: '请求错误',401: '未授权，请重新登录',403: '拒绝访问',404: '请求资源不存在',500: '服务器错误',502: '网关错误',503: '服务不可用'}const errorMessage = errorMap[code] || message || '未知错误'uni.showToast({title: errorMessage,icon: 'none',duration: 2000})// 处理 token 过期if (code === 401) {// 清除本地 token 并跳转到登录页uni.removeStorageSync('token')uni.navigateTo({url: '/pages/login/login'})}
}// 封装常用方法
const get = (url, data, options = {}) => {return http({url,data,method: 'GET',...options})
}const post = (url, data, options = {}) => {return http({url,data,method: 'POST',...options})
}const del = (url, data, options = {}) => {return http({url,data,method: 'DELETE',...options})
}const put = (url, data, options = {}) => {return http({url,data,method: 'PUT',...options})
}export default {get,post,del,put,request: http
}

// /utils/api.js
import http from './http'export default {// 示例接口login: (data) => http.post('/user/login', data),getUserInfo: () => http.get('/user/info', {loading: true}), // 带加载提示getList: (params) => http.get('/data/list', params),// 获取全部设备列表getDeviceListAll: () => http.get('/iot/device/listAll', {loading: true}),// 更新设备管理updateDevices: (data) => http.put('/iot/device', data)
}

// main.js// #ifndef VUE3
import Vue from 'vue'
import App from './App'
import api from './utils/api'// 挂载到 Vue 原型
Vue.prototype.$api = apiVue.config.productionTip = falseApp.mpType = 'app'const app = new Vue({...App
})
app.$mount()
// #endif// #ifdef VUE3
import { createSSRApp } from 'vue'
import App from './App.vue'
export function createApp() {const app = createSSRApp(App)return {app}
}
// #endif

<!-- page/index/index.vue --><template><view class="container"><view class="warp"><!-- 宫格 --><uni-grid :column="2" :highlight="true" @change="change" :disabled="loading"><uni-grid-item v-for="item in getDeviceList" :index="item.id" :key="item.id"><view class="grid-item-box"><!-- 添加加载动画 --><uni-icons v-if="loading" type="spinner-cycle" color="#999" :size="30" /><uni-icons v-else :type="item.powerStatus === '1' ? 'checkbox-filled' : 'clear'" :size="30":color="item.powerStatus === '1' ? '#4cd964' : '#777'" /><text class="text">{{ item.location }} - {{ item.deviceName }}</text></view></uni-grid-item></uni-grid></view></view>
</template><script>export default {data() {return {// 设备列表getDeviceList: [],loading: false}},// 推荐方案：组合使用生命周期onLoad() {// 初始化页面时执行（推荐）this.getDeviceListAll()},onShow() {// 页面显示时执行（适用于需要实时刷新的场景）// this.refreshData()},methods: {async change(e) {try {this.loading = trueconst deviceId = e.detail.indexconst targetDevice = this.getDeviceList.find(item =>String(item.id) === String(deviceId));// 未找到设备的错误处理if (!targetDevice) {uni.showToast({title: '设备不存在',icon: 'none'});return;}// 状态切换逻辑const newStatus = targetDevice.powerStatus === '1' ? '0' : '1';// 乐观更新：先更新本地数据this.updateLocalDeviceStatus(deviceId, newStatus)// 发送更新请求					await this.$api.updateDevices({id: deviceId,powerStatus: newStatus})uni.showToast({title: '状态更新成功',icon: 'success'})} catch (error) {// 回滚本地数据this.getDeviceListAll()uni.showToast({title: '更新失败，已恢复状态',icon: 'none'})} finally {this.loading = false}},// 本地数据更新方法updateLocalDeviceStatus(deviceId, newStatus) {this.getDeviceList = this.getDeviceList.map(item => {if (item.id == deviceId) {return {...item,powerStatus: newStatus}}return item})},// 获取设备管理列表async getDeviceListAll() {try {const data = await this.$api.getDeviceListAll()this.getDeviceList = data.map(item => ({...item,powerStatus: String(item.powerStatus)}))} catch (err) {console.error('请求失败:', err)}}}}
</script><style lang="scss">.container {.warp {.text {font-size: 14px;margin-top: 5px;}.grid-item-box {flex: 1;position: relative;/* #ifndef APP-NVUE */display: flex;/* #endif */flex-direction: column;align-items: center;justify-content: center;padding: 15px 0;transition: opacity 0.3s;/* 加载状态样式 */&[loading] {opacity: 0.7;pointer-events: none;}}}}
</style>

2、SpringBoot后端作为MQTT的一个客户端，处理小程序端发过来的控制信息。

<!-- pom.xml文件引入 --><!-- MQTT -->
<dependency><groupId>org.eclipse.paho</groupId><artifactId>org.eclipse.paho.client.mqttv3</artifactId><version>1.2.5</version>
</dependency>

# application.yml配置信息mqtt:broker: tcp://8.134.119.114:1883  # MQTT代理地址clientId: subq7iH8KZeXYKFnusername: adminpassword: publicqos: 1

// MqttConfig.java配置类package com.ruoyi.iot.mqtt;import org.eclipse.paho.client.mqttv3.MqttClient;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;@Configuration
public class MqttConfig {@Value("${mqtt.broker}")private String broker;@Value("${mqtt.clientId}")private String clientId;@Value("${mqtt.username}")private String username;@Value("${mqtt.password}")private String password;@Beanpublic MqttClient mqttClient() throws Exception {MqttConnectOptions options = new MqttConnectOptions();options.setUserName(username);options.setPassword(password.toCharArray());options.setAutomaticReconnect(true);options.setCleanSession(true);MqttClient client = new MqttClient(broker, clientId);client.connect(options);return client;}
}

// DeviceApiController.java接口类package com.ruoyi.api;import com.ruoyi.common.annotation.Anonymous;
import com.ruoyi.common.core.controller.BaseController;
import com.ruoyi.common.core.domain.AjaxResult;
import com.ruoyi.iot.domain.IotDevices;
import com.ruoyi.iot.service.IIotDevicesService;
import org.eclipse.paho.client.mqttv3.MqttClient;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;import java.util.List;/*** 小程序设备接口*/
@Anonymous
@RestController
@RequestMapping("/api/iot/device")
public class DeviceApiController extends BaseController {@Autowiredprivate IIotDevicesService devicesService;@Autowiredprivate MqttClient mqttClient;// 其他略/*** 修改设备管理*/@PutMappingpublic AjaxResult edit(@RequestBody IotDevices iotDevices) {int result = devicesService.updateIotDevices(iotDevices);if (result > 0) {sendMqttCommand(iotDevices);return AjaxResult.success("更新成功");}return AjaxResult.error("更新失败");// return toAjax(devicesService.updateIotDevices(iotDevices));}private void sendMqttCommand(IotDevices device) {try {String topic = "/device/" + device.getId() + "/power";String payload = "{\"status\":" + device.getPowerStatus() + "}";MqttMessage message = new MqttMessage(payload.getBytes());message.setQos(1);message.setRetained(true);mqttClient.publish(topic, message);} catch (Exception e) {logger.error("MQTT消息发送失败: " + e.getMessage());}}
}

3、ESP32订阅MQTT，根据订阅信息，更新端口状态

# main.py文件import time
import network
import ujson
from machine import Pin
from umqtt.simple import MQTTClient# ----------------- 配置参数 -----------------
# Wi-Fi 配置
WIFI_SSID = "weixin:quweiexist"
WIFI_PASSWORD = "woaizhonghua"# MQTT 配置
MQTT_BROKER = "8.134.119.114"  # 服务器IP
MQTT_PORT = 1883
MQTT_USERNAME = "admin"
MQTT_PASSWORD = "public"
MQTT_CLIENT_ID = "l8sYnfRyWz3KMXi9"
MQTT_TOPIC = "/device/1/power"  # 订阅通配符主题（监听所有设备）# LED 初始化（GPIO25）
led = Pin(16, Pin.OUT)
led.off()  # 初始状态关闭# ----------------- Wi-Fi 连接 -----------------
def connect_wifi():sta_if = network.WLAN(network.STA_IF)if not sta_if.isconnected():print("正在连接Wi-Fi...")sta_if.active(True)sta_if.connect(WIFI_SSID, WIFI_PASSWORD)while not sta_if.isconnected():time.sleep(0.5)print("Wi-Fi 连接成功!")print("IP 地址:", sta_if.ifconfig()[0])# ----------------- MQTT 回调函数 -----------------
def mqtt_callback(topic, msg):print("收到消息:", topic.decode(), msg.decode())try:# 解析JSON消息data = ujson.loads(msg)status = data.get("status")if status == 1:led.on()print("LED已开启")elif status == 0:led.off()print("LED已关闭")else:print("无效的状态值")except Exception as e:print("消息解析失败:", e)# ----------------- 主程序 -----------------
def main():# 连接 Wi-Ficonnect_wifi()# 连接 MQTTclient = MQTTClient(client_id=MQTT_CLIENT_ID,server=MQTT_BROKER,port=MQTT_PORT,user=MQTT_USERNAME,password=MQTT_PASSWORD)client.set_callback(mqtt_callback)try:client.connect()client.subscribe(MQTT_TOPIC)print("已连接到 MQTT Broker，等待控制指令...")# 持续监听while True:client.wait_msg()except Exception as e:print("MQTT 连接失败:", e)finally:client.disconnect()if __name__ == "__main__":main()

注意事项：
1、采用路由容易不在一个网段，特别是路由有2.4和5G混用的。
2、MQTT服务端可以采用云服务器部署。
