【TI MSPM0】IQMath库学习

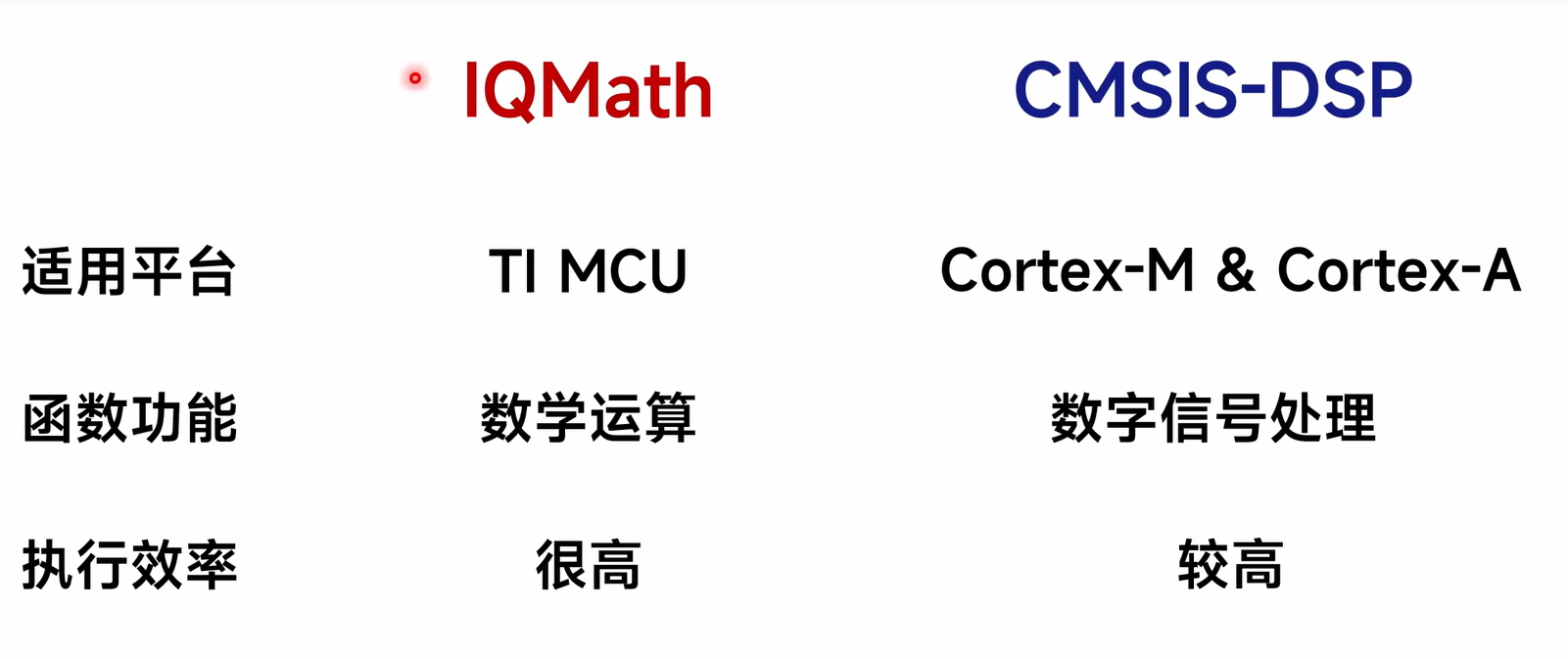

一、与DSP库的区别

二、IQMath库详解

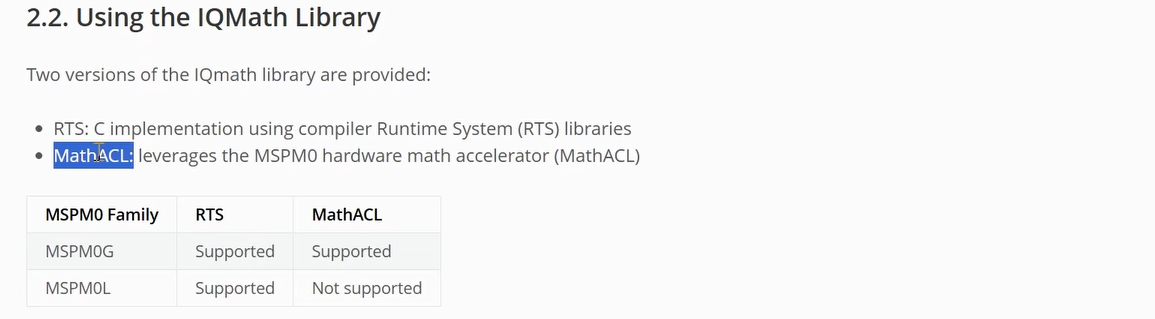

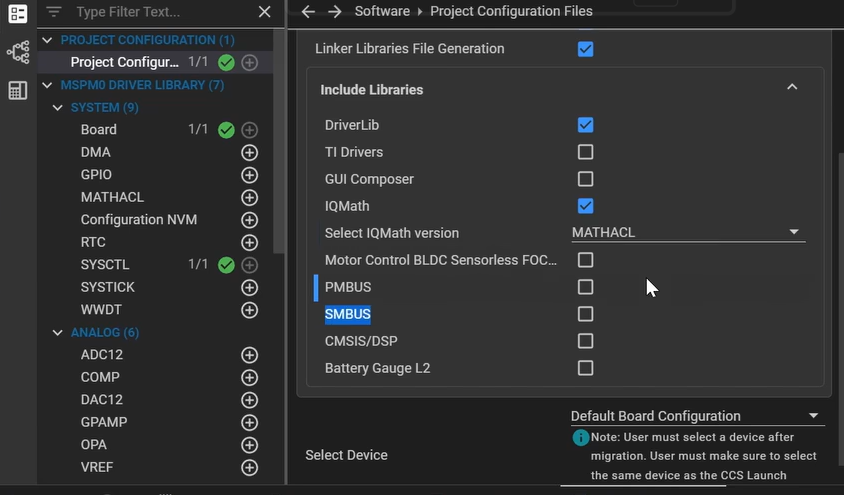

RTS是靠纯软件实现的，而MathACL是靠硬件加速，速度更快

三、工程详解

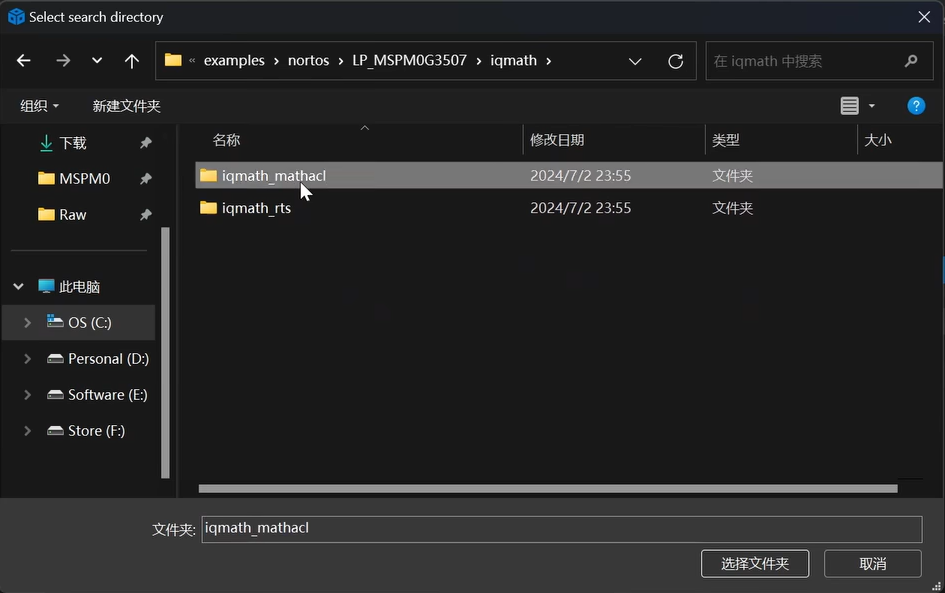

1.导入工程

2.样例详解

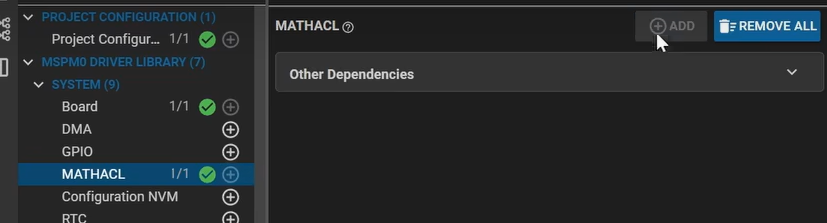

使用一系列的运算来展示IQMath库，使用的是MathACL实现版本的IQMath库

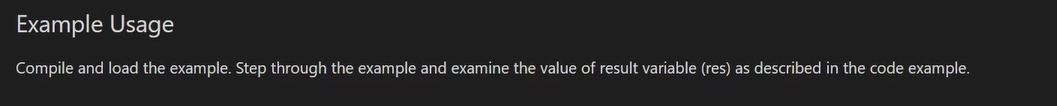

编译加载运行，结果变量叫res

这个例程将IQMath库的所有函数都用了一遍

3.样例展示

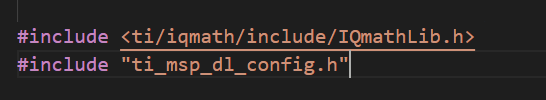

#include <ti/iqmath/include/IQmathLib.h>
#include "ti_msp_dl_config.h"#define PI (3.1415926536)volatile float gErrorTolerance;
volatile bool gTestFailure;int main(void)
